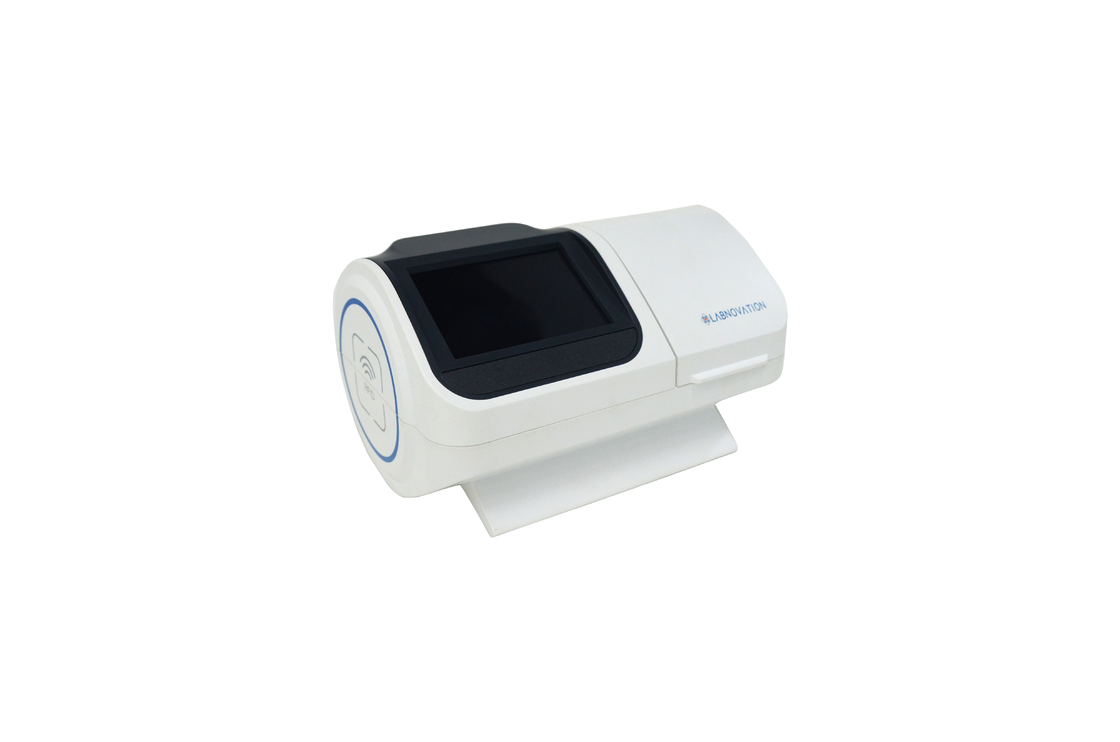

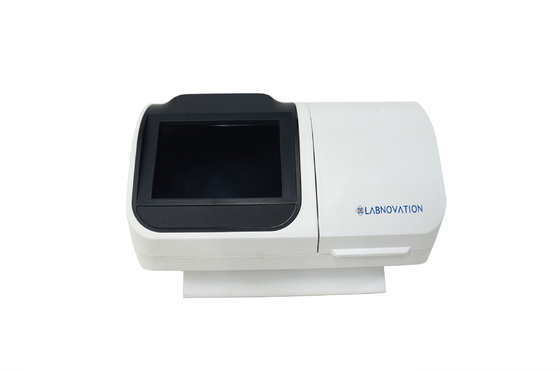

LD100 510nm 580nm Automatic Hematology Analyzer Fluorescent Immunoturbidimetry

HbA1c Analyzer LD-100 Hemoglobin Testing Analyzer POCT One Step Detection Fast Testing Analyzer

Intended Use

• It is intended for the determination of percent hemoglobin A1c (HbA1c) in human whole blood.
• It is a semi-automatic instrument used to analyze glycated hemoglobin.
• It can be used to detect of HbA1c in medical units at all levels.And it's very protable to carry, you can testing HbA1c anytime.
• It has fully automatic system just need one step operation then the test will be start.

Specifications

PRINCIPLE

• Uses the (borate affinity) fluorescent immunoturbidimetry
• Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
• The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.
• The total concentration of hemoglobin depends on the initial reduced fluorescence signal.
• Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients.
• The percentage of glycosylated hemoglobin in total hemoglobin can be determined.

Feature

• Easy to operate, One Step Testing
• High Accuracy
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• Color touch screen
• External printer (Blue-tooth)
• USB Port, LIS Support
• One analyzer for testing without extra instrument

Reliable

Use Step

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Performance Parameters

• Accuracy: Is tested with the reference material as samples and the relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Precision:Samples with a concentration of 4.0%-6.5% are detected, sample coefficient of variation (CV) of the test results is not more than 3%.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficientrof the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the relative deviation of the test results is not more than ±3%.

Certificated
