Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer

Certification
China Labnovation Technologies, Inc. certification
China Labnovation Technologies, Inc. certification
I'm Online Chat Now

Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer

Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer
Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer

Large Image :  Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer

Product Details:
Place of Origin: Shenzhen, China
Brand Name: LABNOVATION
Certification: IFCC, NGSP, CE
Model Number: LD-560
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton Size: 480mm×480mm×615mm, Gross Weight: 28kgs
Delivery Time: 10-15 working days
Supply Ability: 100 Units/Day

Blood Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer

Description
Producat Name: Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer For Small To Medium Clinical Laboratories Test Method: High-Performance Liquid Chromatography (HPLC)
Sample Capacity: 20 Samples Sample Types: Whole Blood Or Pre-diluent Blood
Test Time: 90s/test CV: <2%
High Light:

blood Fully Automated HbA1c Analyzer

,

Diabetes Detection Fully Automated HbA1c Analyzer

,

HPLC Diabetes Detection Analyzer

Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer For Small To Medium Clinical Laboratories

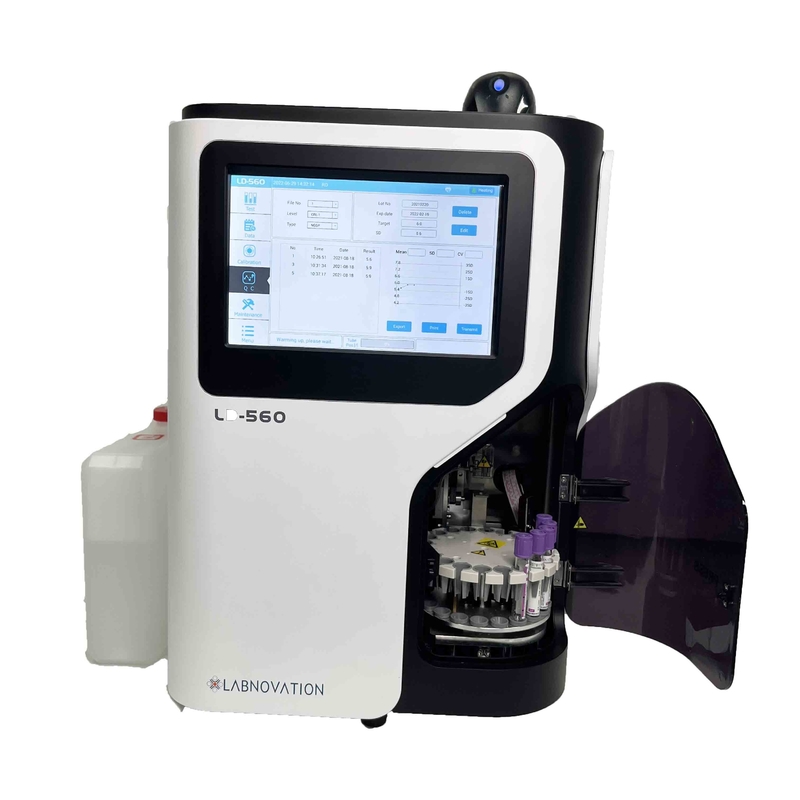

LD-560 HPLC Fully Automated HbA1c Analyzer Diabetes Detection Analyzer with a compact footprint within 90 seconds per test provides comprehensive, fully automated HbA1c and HbA2/F testing. Designed for clinics, physician offices, and clinical laboratories with small to medium sample volumes of 10-50 daily samples, fits in almost any labs and saves valuable bench space.



Specification


Name Fully Automated HbA1c Analyzer HPLC Diabetes Detection Analyzer For Small To Medium Clinical Laboratories
Model LD-560
Methodology High-Performance Liquid Chromatography (HPLC)
Test Modes Fast Mode, Variant Mode
Test Range 3% - 18%
Precision (CV) <2%
Parameter HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional)
First Sample Result 4 Mins
Test Speed Fast Mode: 90 Seconds/Test
Variant Mode: 140 Seconds/Test
Sample Type Whole blood, Pre-diluted blood
Sample Volume Whole blood: 5μL
Pre-diluted blood: 150μL
Sample loading capacity 20
Photometer 420nm
Column Capacity 3000T
Filter Capacity 600T
Display 10“ LCD touch screen
Reagent Kit Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column
Storage 5000 Sample Results
Connection interface USB, LAN, LIS Compatible
Printer Thermal Printer

System operation
environment

Temperature 15-30℃
Humidity 30%-85%
Power AC 100-240V 50/60HZ 300VA
Dimensions 378mmx380mmx510mm
Weight 28Kgs








Performance



HPLC Technology-Gold Standard Methodology
Anchored to the Diabetes Control and Complication Trial (DCCT) reference study
NGSP and IFCC certified
Fast -To Ensure Your Workload is Processed Promptly
HbA1c results in 1.5 minutes
Fully Automated-To Minimize Operation Hassles
Automated Piercing
Fully Automated Start-up, Maintenance and Shutdown
Internal Auto Barcode Scanner for Sample identification
Precise and Reliable -To Serve You Consistently
HbA1c Inter & Intra Measuring CV's≤2%to Enable Exceptional Result Management
Superior Quality Chromatographic Resolution to Minimize Interferences
User Friendly-To Avoid Operator Error
10" Touch Screen with Vivid Color
Easy to Understand and Pellucid Software
Only one type of sample rack required for all different tubes
Reagent Alarm- Monitor Reagent Residue for Timely Reminder
Flexible -To Satisfy Diverse Laboratory's Needs
Different sample tubes can be loaded in any order in any rack
20 Sample Loader Available for Laboratory Automation
Highly customizable remarks to meet your needs
Complex System Functions -For Easy Integration
USB, USB and RS232 ports offer flexible connectivity for LIS/HIS systems
Compact Size -To Minimize Space Requirements
Small Footprint Reduces Bench Space Needed





HPLC Methodology


High-Performance Liquid Chromatography (HPLC), to separate HbA1c directly with measuring the absorbance points continually to form chromatogram. Using normal distribution curve fitting auto-iterative algorithm to get precise HbAlc testing result, excluding interference of variant and unstable hemoglobin like HbF. Standard Analysis Mode will report HbA1a, HbA1b, HbF, HbA1c, P3, HbA0 peak areas and ratio. And the result also includes IFCC, NGSP and eAG value for diverse client needs.




Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:


600T: Eluent A/Eluent B/
Eluent C(Variant Mode

Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
600T: Hemolysis Reagent Used to dissolve red blood cells and release hemoglobin.
3000T: Chromatography Column Used for separation and elution of glycosylated hemoglobin and non glycated.
600T: Hemoglobin Filter Used to initially filter the sample after hemolysis.
12Pcs: Paper Rolls Prints a report of the test results.
