Product Details:
|
| Precision: | 15ul | Dimension: | 610mm×435mm×425mm |
|---|---|---|---|
| Operating Temperature: | 15-35 ℃ | Testing Range: | 3-18% |
| Sample Type: | Whole Blood, Prediluted | Test Speed: | < 5 Minutes |

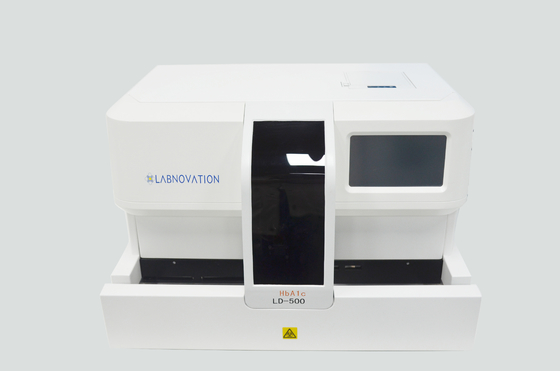

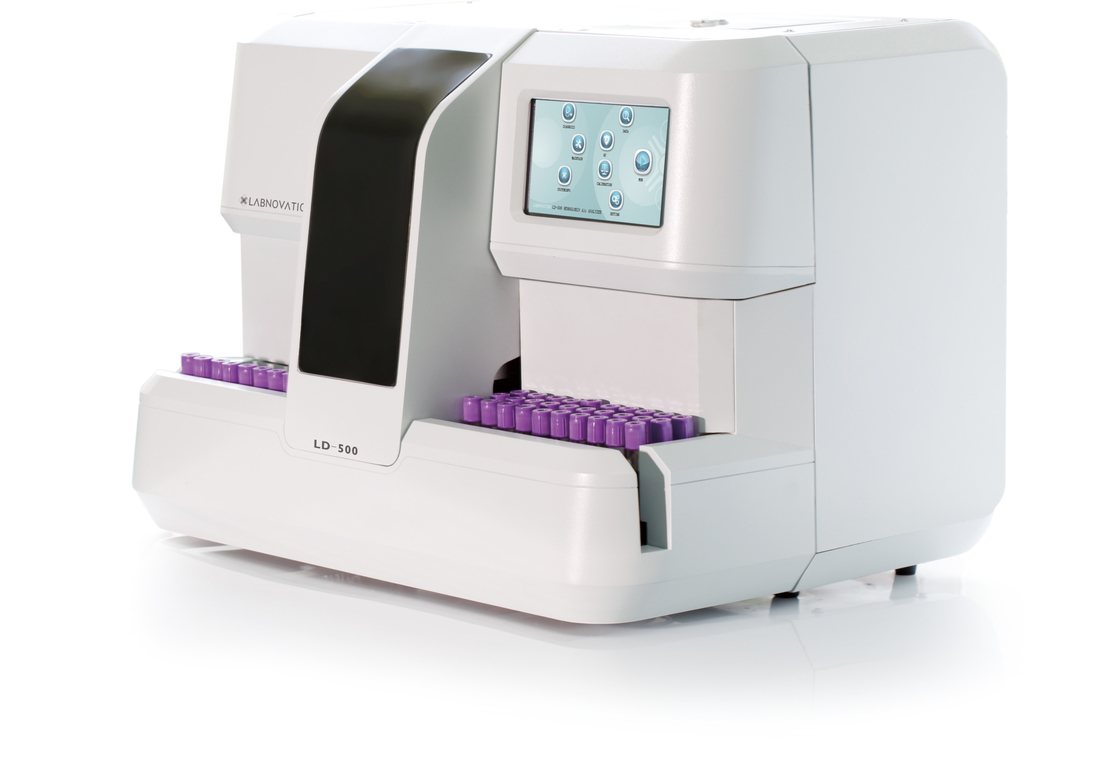

HbA1c Test Analyzer LD-500 Automatic HbA1c Analyzer
Intended Use
LD-500 is an automatic instrument used to separate human hemoglobin subtypes and variants from hemolysed whole blood. This instrument only requires a small volume of sample and is easy to operate. It uses cation exchange chromatography with gradient elution, to separate human hemoglobin subtypes and variants from hemolysed whole blood.
Specification
| Model | LD-500 |
| Sample Type | Whole blood and Prediluted |
| Parameters | HbA1c, HbF |
| Principle | HPLC |
| Wavelength | 415nm |
| Time Per Test | < 5 minute |
| Testing Range | 3-18% |
| Precision | CV<3% |
| Sample Volume | 15ul |
| Display | 7" color touch screen |
| Printer | 80mm integrated thermal |
| Autoloader Capacity | 40tubes, continuously loading available |
| Power Supply | AC 110/220V, 50/60Hz |
| Dimension | 610mm×435mm×425mm |
Feature
Test Step
Advantage
Certificate
