Product Details:
|
Type: | IVD Diagnostic Reagent | Dimensions: | 378mm×380mm×510mm |
---|---|---|---|
Test Speed: | 90 Second Per Test | Report Range: | 3-18% |
Voltage: | 100-240VA | Frequency: | 50/60Hz |
High Light: | HPLC Hematology Analyzer Machine,HbA1c hematology analyzer machine,fully automated haematology analyser |

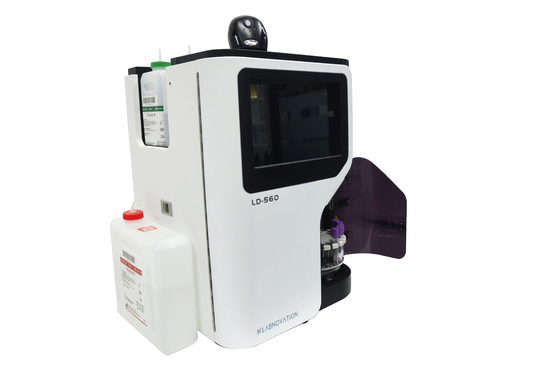

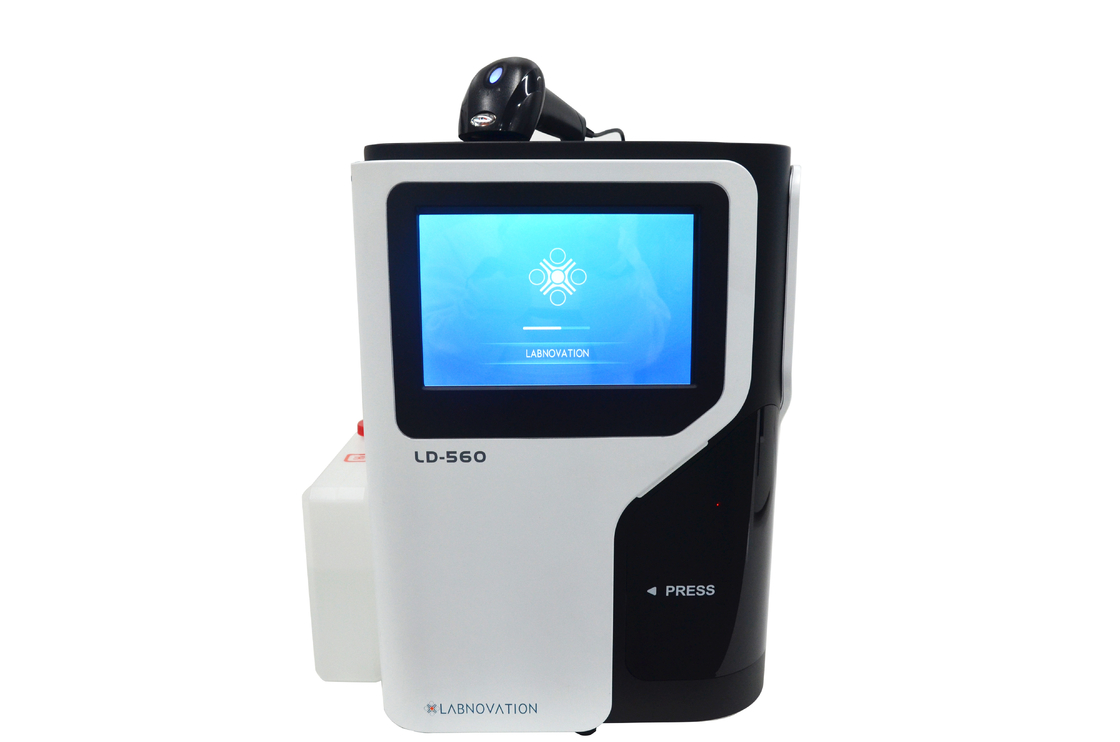

HbA1c Analyzer Fully Automatic LD-560 Hemoglobin Detection Analyzer HPLC Method Support
Intended Use
Specifications
Brand |
Labnovation |
Name | FullY Automatic HbA1c Analyzer |
Model | LD-560 |
Method | HPLC |
Parameters | HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional) |
Test Speed | 90 seconds per test |
Wavelength | 420nm |
Sample Type | Whole Blood, Pre-diluted blood |
Autoloader Capacity | 20 tubes |
Precision | CV<2% |
Column Capacity | 3000 tests |
Working Condition | Temperature: 15-30℃ |
Net weight | 28kg |
Storage environment: Temperature | -20℃~55℃ |
Humidity | 10%~93% |
Equipment category | Fixed |
Equipment type of tested product | Laboratory |
Atmospheric pressure | 75kPa~106kPa |
Feature
Advantage
Performance Parameters
Repeatability: For samples with a test concentration of 4%-6%, the sample coefficient of variation (CV) of the test results is not greater than 2.0%.
Linear range: Within the range of 3%-18% of glycosylated hemoglobin, the linear correlation coefficient R value of the test results should not be less than 0.9900.
Carrying pollution: The carrying pollution rate of the analyzer should not be greater than 2.0%.
Basic function: Provides Chinese report and abnormal alarm.
