Product Details:
|
| Type: | Virus Sample Tube | Group: | Adult |
|---|---|---|---|
| Material: | Plastic | Application: | Hospital & Clinic |
| Dry: | Keep Dry | Function: | Samples Stored & Transported |
| Sunshine: | Avoided | ||
| High Light: | PCR Viral Transport Medium Tubes,Inactivation viral transport medium tubes,Professional Sterile Swab Tube |
||

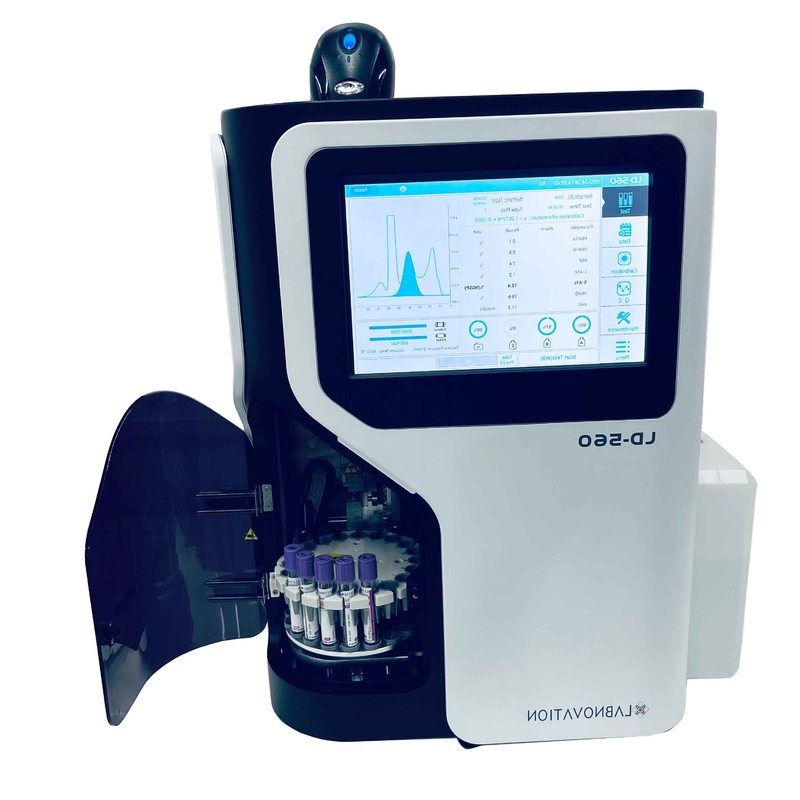

Fully Automated HbA1c Analyzer Lab Equipment Medical Blood Testing Use
Specification
| Method | High-Performance Liquid Chromatography (HPLC) | Sample loading capacity | 20 Tubes |
| Test Modes | Fast Mode, Variant Mode | Photometer | 420nm |
| Sample Type | Whole blood, Pre-diluted blood | Column Capacity | 3000T |
| Test Speed | 90 Seconds/Test | Filter Capacity | 600T |
| Test Range | 3% - 18% | Storage | 5000 Sample Results |
| CV Precision | ≤2% | Sample Volume | 5μL |
| Temperature | 15-30℃ | Humidity | 30-85% |
HPLC Methodology
Using high performance liquid chromatography (HPLC), the stationary phase used is a weakly acidic cation exchanger. Glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin without being charged, and non-glycosylated hemoglobin has a positive charge. According to the different charged properties of hemoglobin, eluents with different pH values and ionic strengths are used sequentially, and several hemoglobin components including HbA1c are separated by high performance liquid chromatography. Each component is detected by a single-wavelength colorimeter, and the detected data is processed by a computer to calculate the percentage content of HbA1c in the total hemoglobin.
HPLC Technology-Gold Standard Methodology
Anchored to the Diabetes Control and Complication Trial (DCCT) reference study
NGSP and IFCC certified
Fast -To Ensure Your Workload is Processed Promptly
HbA1c results in 1.5 minutes
Fully Automated-To Minimize Operation Hassles
Automated Piercing
Fully Automated Start-up, Maintenance and Shutdown
Internal Auto Barcode Scanner for Sample identification
Precise and Reliable -To Serve You Consistently
HbA1c Inter & Intra Measuring CV's≤2％to Enable Exceptional Result Management
Superior Quality Chromatographic Resolution to Minimize Interferences
User Friendly-To Avoid Operator Error
10" Touch Screen with Vivid Color
Easy to Understand and Pellucid Software
Only one type of sample rack required for all different tubes
Reagent Alarm- Monitor Reagent Residue for Timely Reminder
Flexible -To Satisfy Diverse Laboratory's Needs
Different sample tubes can be loaded in any order in any rack
20 Sample Loader Available for Laboratory Automation
Highly customizable remarks to meet your needs
Complex System Functions -For Easy Integration
USB, USB and RS232 ports offer flexible connectivity for LIS/HIS systems
Compact Size -To Minimize Space Requirements
Small Footprint Reduces Bench Space Needed
Reagents and Consumables
| 600T: Eluent A/Eluent B/ Eluent C(Variant Mode) |
Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| 600T: Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| 3000T: Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| 600T: Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| 12Pcs: Paper Rolls | Prints a report of the test results. |
