Product Details:
|
| Method: | HPLC | Test Speed: | 90 Seconds/test |
|---|---|---|---|
| Sample Type: | Whole Blood, Pre-diluted Blood | Column Capacity: | 3000 Test |
| Dimensions: | 378*380*510mm | Certificated: | NGSP,IFCC |
| Data Storage: | 5000 Test | Precision: | CV<2% |

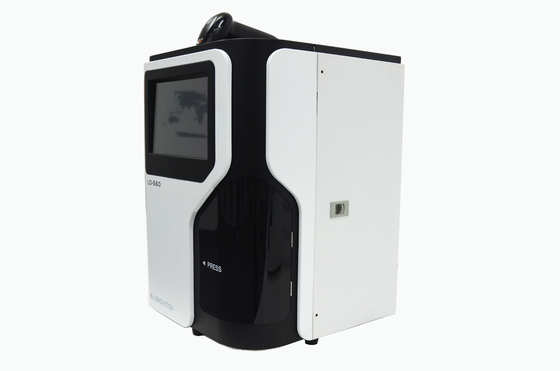

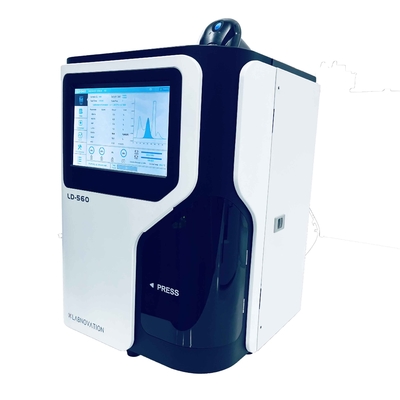

Labnovaion Analyzer LD-560 For HbA1c Testing CV<2% HPLC Method IFCC Certificated HbA1c Analyzer
Intended Use
LD-560 is a fully Automated HbA1c Analyzer which is used in conjunction with suitable reagents for the quantitative detection of glycosylated hemoglobin (HbA1c) in human blood.
Specification
| Model | LD-560 |
| Method | HPLC |
| Parameters | HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional) |
| Test Speed | 90 seconds per test |
| Reagents kit | Eluent A, Eluent B, Hemolysis |
| Autoloader Capacity | 20 tubes |
| Precision | CV＜2% |
| Dimension | 378(L) ×380(W)×510(H)mm |
| Weight | 28kg |
Operation Preparation
Before operating this analyzer, please read the operation manual carefully to avoid malfunction or damage.
If the analyzer is used in a manner not specified by the manufacturer, the protection provided by the analyzer may be destroyed.
Before turning on the analyzer, the operator must check the following requirements to ensure that the system is ready.
(1) Check the remaining amount of reagents
Check whether the remaining amount of eluent A, eluent B, eluent C and hemolysis agent is sufficient.
(2) Check the waste liquid barrel
Check whether the waste liquid barrel has been emptied before starting the analyzer every day.
(3) Check the liquid tubes and power supply
Check whether the tubes of reagent and waste liquid are bent and whether the connections are reliable.
Check the analyzer for fluid leakage.
Check whether the power plug of the analyzer is securely inserted into the power socket.
(4) Check the printer
Check whether the paper roll is sufficient and whether it is installed in correct place.
Certificate
FAQ
A: Yes , we have. The display is a minicap computer.
A: Yes, we have. LD-560 install the built-in printer.
A: Yes. The instrument has been tested by safety regulations and EMC to meet regulatory requirements.
A: Ring injection, 20 sample positions.
