Product Details:
|
| Type: | IVD Diagnostic Reagent | Dimensions: | 378mm×380mm×510mm |
|---|---|---|---|
| Test Speed: | 90 Second Per Test | Report Range: | 3-18% |
| Voltage: | 100-240VAC | Frequency: | 50/60Hz |

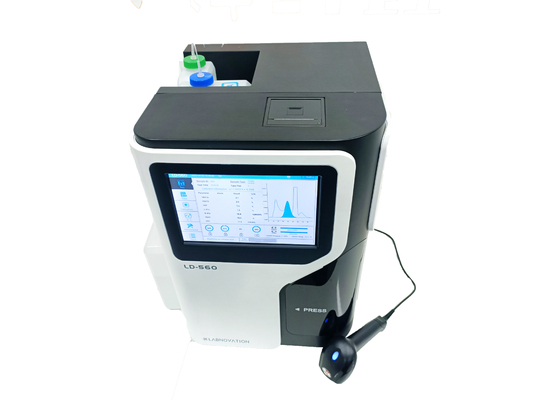

HbA1c Analyzer LD-560 Full Automated Analyzer For HbA1c Testing Dual Certificated CV<2% HPLC Method Analyzer
Intended Use
The Fully Automated HbA1c Analyzer is used in conjunction with suitable reagents for the quantitative detection of glycosylated hemoglobin (HbA1c) in human blood.
Specifications
| Brand |
Labnovation |
| Name | FullY Automatic HbA1c Analyzer |
| Model | LD-560 |
| Method | HPLC |
| Parameters | HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional) |
| Test Speed | 90 seconds per test |
| Wavelength | 420nm |
| Sample Type | Whole Blood, Pre-diluted blood |
| Autoloader Capacity | 20 tubes |
| Precision | CV＜2% |
| Column Capacity | 3000 tests |
| Working Condition | Temperature: 15-30℃ |
| Net weight | 28kg |
| Storage environment: Temperature | -20℃～55℃ |
| Humidity | 10%～93% |
| Equipment category | Fixed |
| Equipment type of tested product | Laboratory |
| Atmospheric pressure | 75kPa～106kPa |
Principle
Using high performance liquid chromatography (HPLC), the stationary phase used is a weakly acidic cation exchanger. Glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin without being charged, and non-glycosylated hemoglobin has a positive charge.
Feature
Reagents and Consumable
Performance Parameters
Repeatability: For samples with a test concentration of 4%-6%, the sample coefficient of variation (CV) of the test results is not greater than 2.0%.
Linear range: Within the range of 3%-18% of glycosylated hemoglobin, the linear correlation coefficient R value of the test results should not be less than 0.9900.
Carrying pollution: The carrying pollution rate of the analyzer should not be greater than 2.0%.
Basic function: Provides Chinese report and abnormal alarm.
FAQ
Generally it is 5 working days if goods in stock. within 10 working days if the goods need production and also the delivery time depands on quantity
The shipping way normally depand on your quantity,total CBM and weight.
Almost all our medical equipment is IFCC, NGSP and ISO9001 approved.
