Product Details:
|
| Method: | HPLC | Sample Type: | Whole Blood, Per-Diluted Blood |
|---|---|---|---|
| Blood Volume: | 5μL In Whole Blood Mode 150μL In Pre-diluted Mode | Sample Loading Method: | Continuous Automatic Sample Loading |
| Sample Capacity: | CV<2% | Autoloader Capacity: | 20 Samples |
| High Light: | IFCC Automated HbA1c Analyzer,HPLC System Automated HbA1c Analyzer |
||

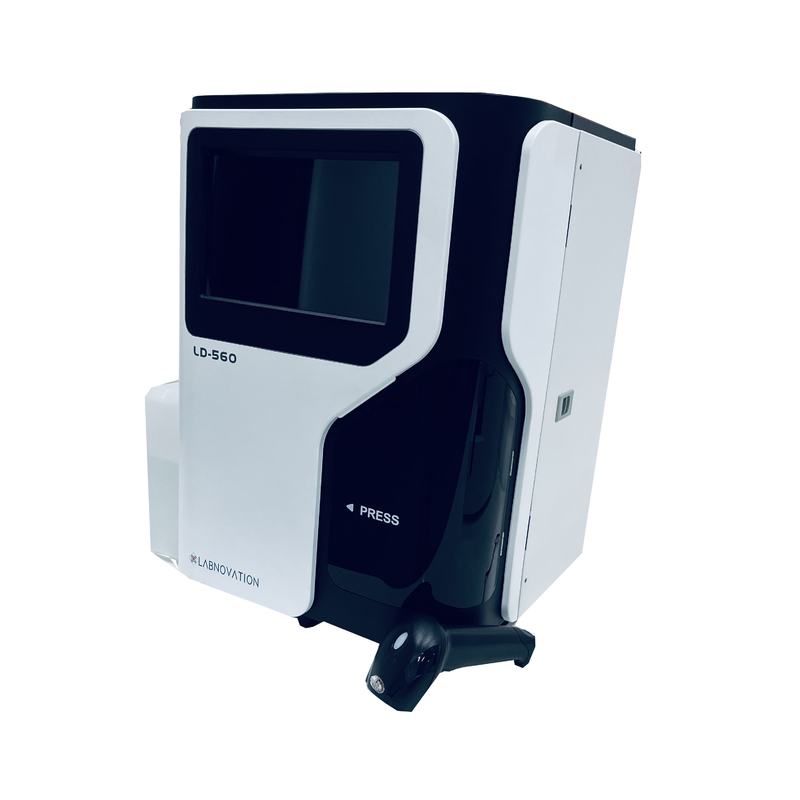

Automated HbA1c Analyzer
LD-560
The automatic glycated hemoglobin analyzer is a fully automatic instrument for analyzing glycated hemoglobin. It has the characteristics of less sample consumption and easy operation. It is suitable for the detection of glycated hemoglobin in medical institution at all levels.
The automatic glycated hemoglobin analyzer is composed of an automatic sample injection system, a liquid chromatography separation system, a colorimetric detection and control system, a bar code scanning system, and a display and printing system.
Specifications
| Name |
Fully Automated HbA1c Analyzer |
| Model | LD-560 |
| Method | HPLC |
| Parameters | HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional) |
| Test Speed | 90 seconds per test |
| Wavelength | 420nm |
| Sample Type | Whole Blood, Pre-diluted blood |
| Autoloader Capacity | 20 tubes |
| Reagents Kit | Eluent A, Eluen B, Hemolysis, Chromatography Column |
| Precision | CV＜2% |
| Column Capacity | 3000 tests |
| Report Range | 3-18% |
| Working Condition | Temperature: 15-30℃ |
| Voltage | 100-240V |
| Dimensions | 378mm×380mm×510mm |
Reagents and Consumables
