Product Details:
|
| Principle: | HPLC (High Performance Liquid Chromatography) | Test Speed: | 90s/test |
|---|---|---|---|
| Sample Types: | Whole Blood Or Pre-diluent Sample | Sample Capacity: | 20 Samples |
| Data Storage: | 5000 | CV: | <2% |
| Test Range: | 3.0%~18.0% | Gross Weiht: | 28kg |
| Dimensions: | 378(L) ×380(W)×510(H)mm | Shelf Life: | 5 Years |
| High Light: | One Step HbA1c HPLC analyzer,High Accurate HbA1c HPLC analyzer,300VA automated hba1c analyzer |
||

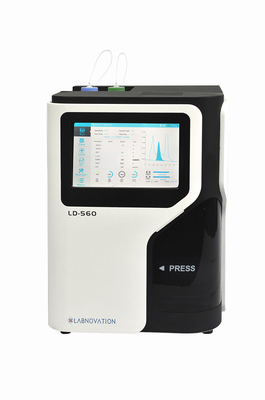

HbA1c Analyzer HPLC Method High Accurate One Step HbA1c Diagnostic Automated Analyzer
Intended use
The analyzer needs to be installed under the following conditions:
1. Power supply: 100-240V～, 50/60Hz
2. Ambient temperature: 10℃～30℃
3. Relative humidity: ≤80%
4. Atmospheric pressure: 80kPa～106kPa
5. Overvoltage category: Class Ⅱ
6. Pollution degree: Level 2
7. Input power: 300VA
8. Altitude: below 2000 meters
Specification
| Instrument | Manufacturer | Lanovation |
| Manufacture location | Shenzhen, China | |
| Model | LD-560 | |
| Dection information | Principle method | HPLC |
| Detection method | Dual wavelengh colorimetry | |
| Wavelength | 420nm | |
| Test Speed | 90 Seconds/test | |
| Test Speed throughtput | 40 Samples per hour | |
| Sample information | Sample types | Whole blood or Pre-diluent sample |
| Sample volume | 5μL in whole blood mode 150μL in pre-diluted mode |
|
| Sample capacity | 20 samples | |
| Sample loading method | Continuous automatic sample loading | |
| Mixer | No, but probe mixing samples | |
| Reagent and other consumble | Column test quantity | 3000T |
| Reagent pack | 600T(Reagent)/ 3000T(Column) separate | |
| Eluent | 2 | |
| Operation and character information | Operation screen | 10 inch Full color LCD display |
| Data storage | 5000 | |
| Built-in Thermal Printer | Yes | |
| Performance information | CV | <2% |
| Test range | 3.0%~18.0% | |
| Package Information |
Dimensions | 378(L) ×380(W)×510(H)mm |
| Weight | 28kg |
Reagents and Consumables
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
