Product Details:
|
| Principle: | HPLC (High Performance Liquid Chromatography) | Sample Types: | Whole Blood Or Pre-diluent Sample |
|---|---|---|---|
| Test Speed: | 90s/test | CV: | <2% |
| Test Range: | 3.0%~18.0% | Sample Capacity: | 20 Samples |
| High Light: | Fully Automated HPLC HbA1c Analyzer,HPLC HbA1c Analyzer High Correlation,LCD display Fully Automated HbA1c Analyzer |
||
CV<2% High Correlation with Import HPLC Fully Automated HbA1c Analyzer

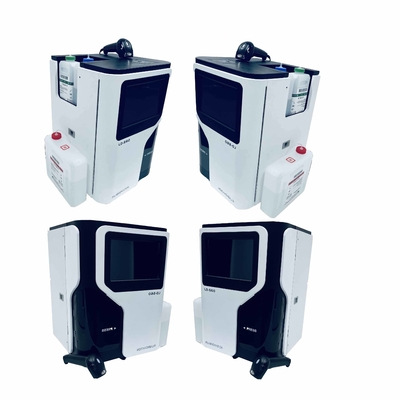

The Fully Automated HbA1c Analyzer LD-560 provides comprehensive, fully automated HbA1c and HbA2/F testing with a compact footprint. Designed for clinics, physician offices, and clinical laboratories with small to medium sample volumes, with an integrated computer, fits in almost any lab and saves valuable bench space. LD-560 is the smallest fully automatic high performance liquid chromatography analyzer. It integrates both diabetes monitoring and abnormal hemoglobin detection on a fully automated platform. Quickly detect hemoglobin such as HbA1C, HbA2, HbF, etc.Suitable for laboratories and clinical clinics within 50 daily samples.
Specification
| Instrument | Manufacturer | Lanovation |
| Manufacture location | Shenzhen, China | |
| Model | LD-560 | |
| Dection information | Principle | HPLC |
| Test Speed | 90 Seconds/test | |
| Test Speed throughtput | 40 Samples per hour | |
| Sample information | Sample types | Whole blood or Pre-diluent sample |
| Sample volume | 5μL in whole blood mode 150μL in pre-diluted mode |
|
| Sample capacity | 20 samples | |
| Sample loading method | Continuous automatic sample loading | |
| Mixer | No, but probe mixing samples | |
| Reagent and other consumble | Column test quantity | 3000T |
| Reagent pack | 600T(Reagent)/ 3000T(Column) separate | |
| Eluent | 2 | |
| Operation and character information | Operation screen | 10 inch Full color LCD display |
| Data storage | 5000 | |
| Built-in Thermal Printer | Yes | |
| Performance information | CV | <2% |
| Test range | 3.0%~18.0% | |
| Package Information |
Dimensions | 378(L) ×380(W)×510(H)mm |
| Weight | 28kg |
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
*HPLC principle-Gloden Standard
*CV<2%-Stable and Accurate
*Full Automatic smart System
*Quality & Performance - IFCC & NGSP Certificate
*User Friendly-Easy Opertation
IFCC & NGSP Certification
