Product Details:
|
| Principle: | HPLC (High Performance Liquid Chromatography) | Test Speed: | 90s/test |
|---|---|---|---|
| CV: | <2% | Sample Types: | Whole Blood Or Pre-diluent Sample |
| Test Blood Volume: | 5μL In Whole Blood Mode; 150μL In Pre-diluted Mode | Sample Loading Method: | Continuous Automatic Sample Loading |
| Sample Capacity: | 20 Samples | Reagent Pack: | 600T |
| Column Test Quantity: | 3000T | Eluent Kind: | Eluent A, Eluent B，Eluent C (Variant Mode) |
| Data Storage: | 5000 | Printer: | Built-in Thermal Printer |
| Test Range: | 3.0%~18.0% | Operation Screen: | 10" Full Color LCD Display |
| Gross Weiht: | 28kg | Dimensions: | 378(L) ×380(W)×510(H)mm |
| Shelf Life: | 5 Years | Warranty Of Device: | 1 Year |
| Warranty Of Sampling Sensor: | 6 Month | ||
| High Light: | AC240V HbA1c HPLC analyzer,Thermal Printer HbA1c HPLC analyzer,HPLC Method automated hba1c analyzer |
||

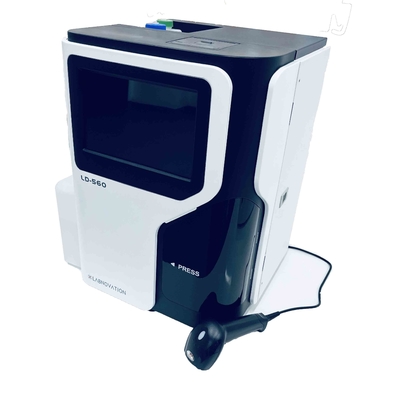

Automatic HbA1c Analyzer High Performance HPLC Golden Method for Diabetes Diagnosis
Intended use
Specification
| Model | LD-560 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| First Sample Result | 4 Mins |
| Test Speed | Fast Mode: 90 Seconds/Test Variant Mode: 140 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 20 |
| Photometer | 420nm |
| Chromatography Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 5000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
| System operation environment | Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 378mmx380mmx510mm |
| Weight | 28kgs |
*HPLC, CV<2% - Accurate and Stable
*Full Automatic smart System
*Quality & Performance - IFCC & NGSP Certificate
*User Friendly
Main Parts
The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.
Reagents and Consumables
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
Certificate
