Product Details:
|
| Test Principle: | HPLC (High Performance Liquid Chromatography) | CV: | <2% |
|---|---|---|---|
| Test Speed: | 90s/test | Sample Types: | Whole Blood Or Pre-diluent Sample |
| Sample Volume: | 5μL In Whole Blood Mode; 150μL In Pre-diluted Mode | Sample Amount: | 20 Samples |
| High Light: | Stable Detection HbA1c HPLC analyzer,Sensitive Detection HbA1c HPLC analyzer,Diabetes HPLC automated hba1c analyzer |
||

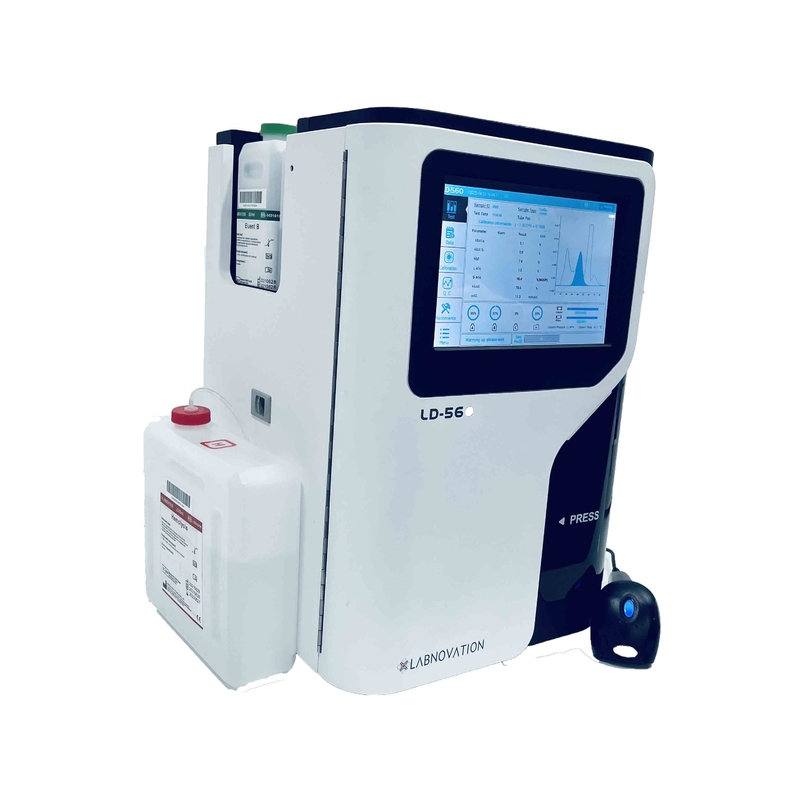

HPLC Automatic HbA1c Analyzer Stable and Sensitive Detection for Diabetes
The HPLC automatic HbA1c analyzer stable and sensitive detection for Diabetes LD-560 provides comprehensive, fully automated HbA1c and HbA2/F testing with a compact footprint. Designed for clinics, physician offices, and clinical laboratories with small to medium sample volumes, with an integrated computer, fits in almost any lab and saves valuable bench space.
Specification
| Model | LD-560 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| First Sample Result | 4 Mins |
| Test Speed | Fast Mode: 90 Seconds/Test Variant Mode: 140 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 20 |
| Photometer | 420nm |
| Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 5000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
|
System operation environment |
Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 378mmx380mmx510mm |
| Weight | 28Kgs |
Positioning
* HPLC- High Correlation with import HPLC
* CV<2% - Accurate and Stable
* Full Automatated - Automated sample loading and barcode scanning
* Quality & Performance - IFCC & NGSP Certificate
Main Parts
The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.
Reagents and Consumables
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
Certificate
