Accurate Test HPLC HbA1c Analyzer HbA1c Levels Detection For Diabetes

HPLC HbA1c Analyzer Detection of HbA1c Levels for Diabetes

---

Specification

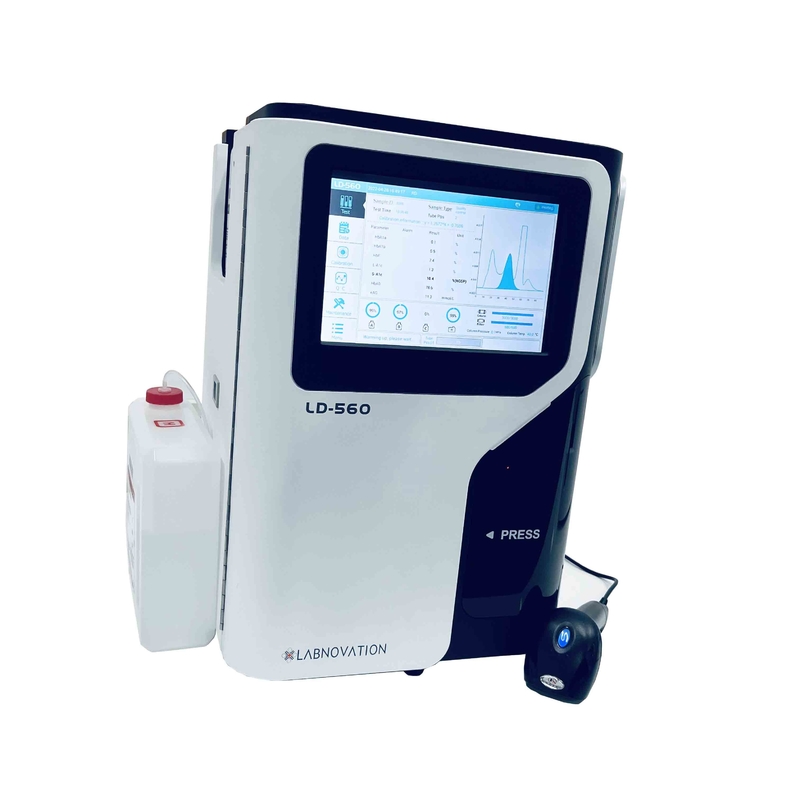

Model	LD-560
Methodology	High-Performance Liquid Chromatography (HPLC)
Test Modes	Fast Mode, Variant Mode
Test Range	3% - 18%
Precision (CV)	＜2%
Parameter	HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional)
First Sample Result	4 Mins
Test Speed	Fast Mode: 90 Seconds/Test Variant Mode: 140 Seconds/Test
Sample Type	Whole blood, Pre-diluted blood
Sample Volume	Whole blood: 5μL Pre-diluted blood: 150μL
Sample loading capacity	20
Photometer	420nm
Column Capacity	3000T
Filter Capacity	600T
Display	10“ LCD touch screen
Reagent Kit	Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column
Storage	5000 Sample Results
Connection interface	USB, LAN, LIS Compatible
Printer	Thermal Printer
System operation environment	Temperature 15-30℃ Humidity 30%-85%
Power	AC 100-240V 50/60HZ 300VA
Dimensions	378mmx380mmx510mm
Weight	28Kgs





---

HPLC Methodology



The mobile phase in the solution reservoir enters the injector via the HPLC pump, where it is mixed with the sample.Each component of the mixture passes through the chromatographic column at different rates, and each component flows out of the chromatographic column sequentially due to the different adsorption capacities between each component and the stationary phase in the chromatographic column.Then, the component concentration is converted into an electrical signal and transmitted to the HPLC software of the computer, and the generated waste liquid enters the waste liquid bottle. After the operation is completed, the chromatogram can be obtained in the HPLC software.





---

Positioning







---

Performance



* HPLC- High Correlation with import HPLC

* CV<2% - Accurate and Stable

* Full Automatated -  Automated sample loading and barcode scanning
* Quality & Performance - IFCC & NGSP Certificate



---

Contents



Main Parts

The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.


Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:

Eluent A/Eluent B/Eluent C(Variant Mode)	Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
Hemolysis Reagent	Used to dissolve red blood cells and release hemoglobin.
Chromatography Column	Used for separation and elution of glycosylated hemoglobin and non glycated.
Hemoglobin Filter	Used to initially filter the sample after hemolysis.
Paper Rolls	Prints a report of the test results.



Clover A1c : HbA1C Analyzer

• The full automatic analyzer provides quantitative measurement of the hemoglobin A1c(%HbA1c) levels using small blood sample(4ul).
• This can help reduction the risk of diabetes complications
• HbA1c levels is measured small sized monitor, designed for fast, easily, accurate test.

Specifications

• Principle : Boronate affinity Method : Spectrophotometry
• Test Range : 4~14 %
• Measuring time : 5 min (HbA1c) / 3,5,9 sec (Glucose)
• Operating Temperature : room temperature(17-32 °C , 63-90 °F )
• Sample : Capillary Whole Blood, Venous Blood with anticoagulant 4ul
• NGSP certified & IFCC traceable
• CE & FDA certified
