Product Details:
|
| Name: | Fully Automated HPLC Software HbA1c Analyzer HbA1c Levels Detection For Diabetes | Model: | LD-600 |
|---|---|---|---|
| Principle: | HPLC | CV: | <2% |
| Test Speed: | 65s/test | Sample Types: | Whole Blood Or Pre-diluent Sample |
| Sample Volume: | Whole Blood: 5 Ul；Pre-dilution：450 Ul | Load Compacity: | 110 Tubes |
| STAT Position: | 1 Emergency Position | Display: | 10" LCD Touch Screen |
| High Light: | HPLC Software HbA1c Test Analyzer,Diabetes Detection HbA1c Test Analyzer,Fully Automated hba1c test equipment |
||

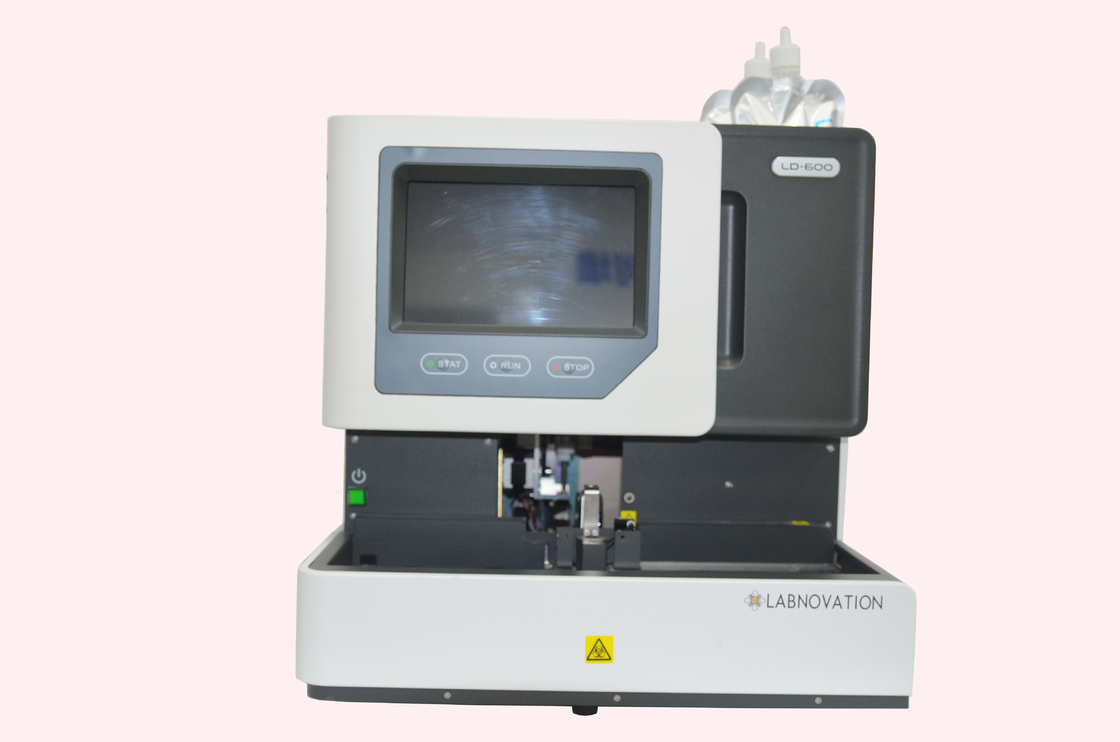

Fully Automated HPLC Software HbA1c Analyzer HbA1c Levels Detection for Diabetes
The Fully Automated HPLC Software HbA1c Analyzer HbA1c Levels Detection for Diabetes offers the fastest available throughput of HbAlc results in just 65 seconds, with large capacity of 110 sampls,providing the outstanding solution for quick and reliable diabetic monitoring with Hb variant detection.
Specification
| Model | LD-600 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| Test Speed | Fast Mode: 65 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 110 |
| Photometer | 420nm/600nm |
| Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 10000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
|
System operation environment |
Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 768mmx600mmx570mm |
| Weight | ≤50Kgs |
* HPLC- High Correlation with import HPLC
* CV<2% - Accurate and Stable
* Full Automatated - Automated sample loading and barcode scanning
* Quality & Performance - IFCC & NGSP Certificate
Reagents and Consumables
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
