Product Details:
|
| Product Name: | Large Size Touch Screen Fully Automated HbA1c Glycosylated Hemoglobin Detection Analyzer | Method: | HPLC(High Performance Liquid Chromatography) |
|---|---|---|---|
| Sample Type: | Whole Blood, Pre-diluted Blood | Wave Length: | Dual,420/600nm |
| Test Speed: | 65 Seconds/Test | Report Range: | 3-18% |
| Dimensions: | 760mm*600mm*570mm | Weight: | 50Kg |
| CV: | ≤2% | ||
| High Light: | Fully Automated HbA1c Test Analyzer,Touch Screen HbA1c Test Analyzer,Large Fully Automated HbA1c Analyzer |
||

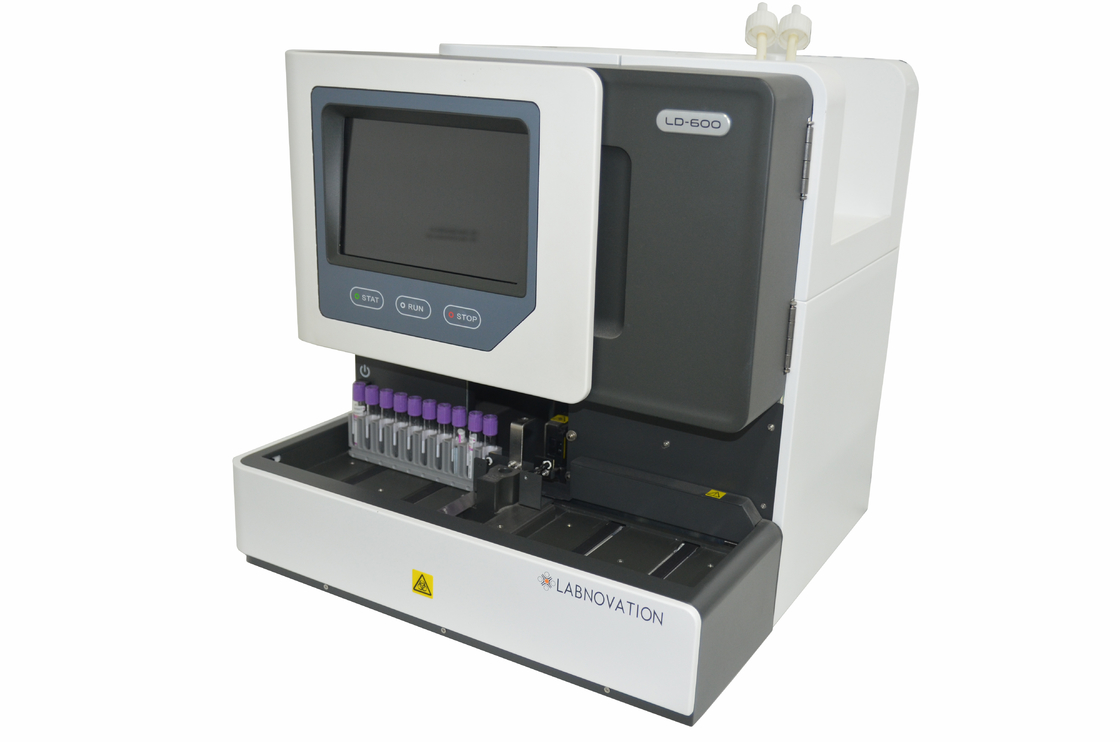

Large Size Touch Screen Fully Automated HbA1c Glycosylated Hemoglobin Detection Analyzer
Intended Use
The Fully Automated HbA1c Analyzer is used to detect the percentage of HbA1c in total hemoglobin in blood samples.
Work Principle
The Fully Automated HbA1c Analyzer uses high performance liquid chromatography and the stationary phase used is a weak acidic cation exchanger. The glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin and then it becomes electrically neutral. Non-glycosylated hemoglobin carries a positive charge. According to the different nature of hemoglobin, washing solution of different pH and ionic strength are used in turn. High performance liquid chromatography is used to separate several hemoglobin constituents including HbA1c. The constituents are detected by a dual-wavelength colorimeter and the data is processed by microcomputer to calculate the percentage of HbA1c in total hemoglobin. Then it achieves quantitative detection of glycosylated hemoglobin in the blood.
Specifications
| Name | Large Size Touch Screen Fully Automated HbA1c Glycosylated Hemoglobin Detection Analyzer |
| Model | LD-600 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| Test Speed | Fast Mode: 65 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 110 |
| Photometer | 420nm/600nm |
| Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 10000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
|
System operation environment |
Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 768mmx600mmx570mm |
| Weight | ≤50Kgs |
