Product Details:
|
| Product Name: | Fully Automated HbA1c Analyzer For Glycosylated Hemoglobin With Large Size Touch Screen | Method: | HPLC(High Performance Liquid Chromatography) |
|---|---|---|---|
| Sample Type: | Whole Blood, Pre-diluted Blood | Display: | 10“ LCD Touch Screen |
| Test Speed: | 65 Seconds/Test | Mode: | Fast Mode, Variant Mode |
| Weight: | 50Kg | CV: | ≤2% |
| High Light: | Large Size Fully Automated HbA1c Analyzer,Touch Screen Fully Automated HbA1c Analyzer,Glycosylated Hemoglobin HbA1c Test Analyzer |
||

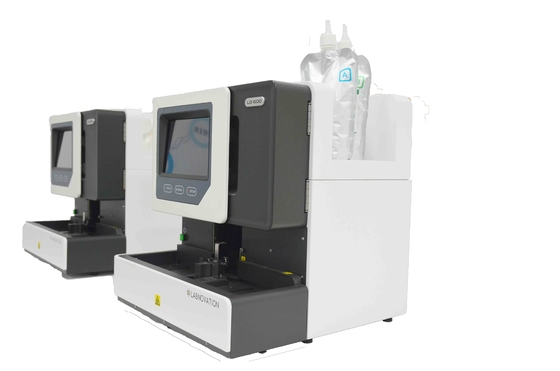

Fully Automated HbA1c Analyzer For Glycosylated Hemoglobin With Large Size Touch Screen
Intended Use
No sample preparation and very little hands-on time by the operator is required for the LD-600 Analyzer. The sampling station accepts barcoded
primary tubes, samples from the closed tube and dilutes and injects the specimen into the chromatographic station for analysis.
The Fully Automated HbA1c Analyzer is used to detect the percentage of HbA1c in total hemoglobin in blood samples.
Work Principle
The Fully Automated HbA1c Analyzer uses high performance liquid chromatography and the stationary phase used is a weak acidic cation exchanger. The glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin and then it becomes electrically neutral. Non-glycosylated hemoglobin carries a positive charge. According to the different nature of hemoglobin, washing solution of different pH and ionic strength are used in turn. High performance liquid chromatography is used to separate several hemoglobin constituents including HbA1c. The constituents are detected by a dual-wavelength colorimeter and the data is processed by microcomputer to calculate the percentage of HbA1c in total hemoglobin. Then it achieves quantitative detection of glycosylated hemoglobin in the blood.
Specifications
| Name | Large Size Touch Screen Fully Automated HbA1c Glycosylated Hemoglobin Detection Analyzer |
| Model | LD-600 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| Test Speed | Fast Mode: 65 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 110 |
| Photometer | 420nm/600nm |
| Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 10000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
|
System operation environment |
Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 768mmx600mmx570mm |
| Weight | ≤50Kgs |
Feature & Advantage
Reagent &Consumables
| Eluent A | 300T*2(900ml*2) |
| Eluent B | 600T*1(500ml*1) |
| Hemolysis | 300T*2(2300ml*2) |
| Paper Rolls | 12 pcs |
| Column Filter | 1 pc |
