Product Details:
|
| Name: | HbA1c Analyzer Medical Blood Testing Use High Effciency HPLC HbA1c Test Analyzer | CV Value: | <2% |
|---|---|---|---|
| Method: | HPLC (High Performance Liquid Chromatography) | Test Speed: | 65 Seconds/test |
| Load Compacity: | 110 Samples | Emergency Position: | 1 STAT |
| High Light: | Medical HPLC HbA1c Test Analyzer,Medical Blood HbA1c Test Analyzer |
||

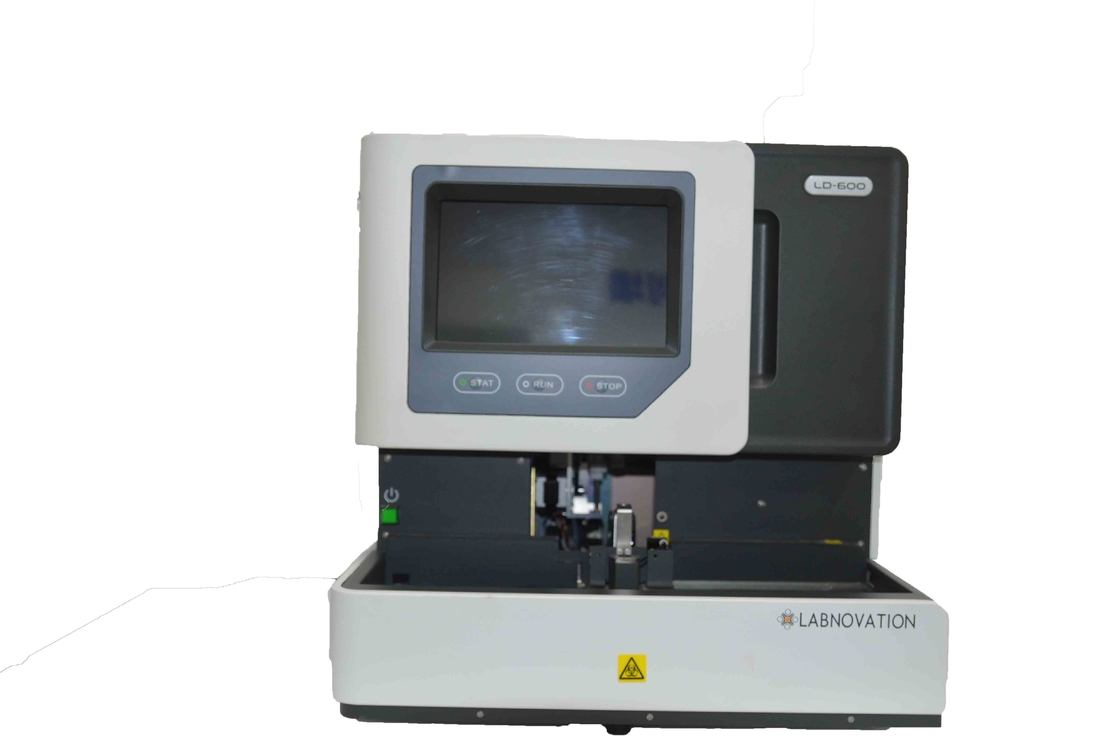

HbA1c Analyzer Medical Blood Testing Use High Effciency HPLC HbA1c Test Analyzer
HbA1c Analyzer Medical Blood Testing Use High Effciency HPLC HbA1c Test Analyzer is the fully automated high performance liquid chromatography analyzer. It integrates both diabetes monitoring and abnormal hemoglobin detection on a fully automated platform. Quickly detect hemoglobin such as HbA1C, HbA2, HbF, etc. with a single touch of the touch screen. Suitable for laboratories and clinical clinics with 10-50 daily samples.
Specification
| Name | HbA1c Analyzer Medical Blood Testing Use High Effciency HPLC HbA1c Test Analyzer |
| Model | LD-600 |
| Methodology | High-Performance Liquid Chromatography (HPLC) |
| Test Modes | Fast Mode, Variant Mode |
| Test Range | 3% - 18% |
| Precision (CV) | ＜2% |
| Parameter | HbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional) |
| Test Speed | Fast Mode: 65 Seconds/Test |
| Sample Type | Whole blood, Pre-diluted blood |
| Sample Volume | Whole blood: 5μL Pre-diluted blood: 150μL |
| Sample loading capacity | 110 tubes |
| Photometer | 420nm/600nm |
| Column Capacity | 3000T |
| Filter Capacity | 600T |
| Display | 10“ LCD touch screen |
| Reagent Kit | Eluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column |
| Storage | 10000 Sample Results |
| Connection interface | USB, LAN, LIS Compatible |
| Printer | Thermal Printer |
|
System operation environment |
Temperature 15-30℃ Humidity 30%-85% |
| Power | AC 100-240V 50/60HZ 300VA |
| Dimensions | 768mmx600mmx570mm |
| Weight | ≤50Kgs |
HPLC Methodology
* HPLC- High Correlation with import HPLC
* CV<2% - Accurate and Stable
* Fast - Test speed is 65s/Test
* Full Automatated - Automated sample loading and barcode scanning
* Quality & Performance - IFCC & NGSP Certified
Reagents and Consumables
| Eluent A/Eluent B/Eluent C(Variant Mode) | Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin. |
| Hemolysis Reagent | Used to dissolve red blood cells and release hemoglobin. |
| Chromatography Column | Used for separation and elution of glycosylated hemoglobin and non glycated. |
| Hemoglobin Filter | Used to initially filter the sample after hemolysis. |
| Paper Rolls | Prints a report of the test results. |
