Product Details:
|
| Size: | 220mm*150mm*120mm | Sample Type: | Whole Blood |
|---|---|---|---|
| Shelf Life: | 9 Months | Measurement Time: | Within 3 Min |
| Classification: | IVD Medical Equipment | Input Power: | <60VA |
| Highlight: | Automated POCT HbA1c analyser,IVD Equipment POCT HbA1c analyser,POCT HbA1c automated hematology analyzer |
||

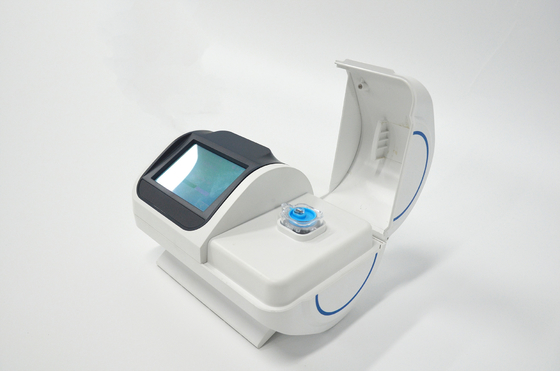

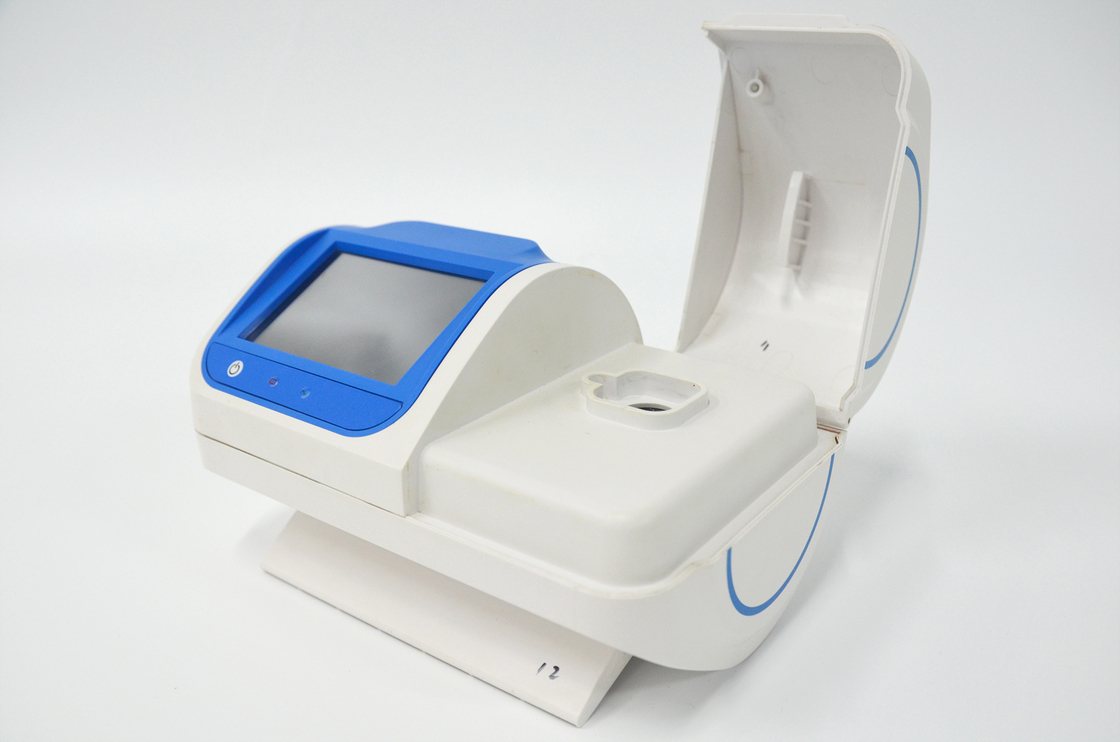

HbA1c Analyzer Hematology Anlyzer LD-100 POCT HbA1c Testing One Step Operation HbA1c Analyzer
Intended Use
This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. HbA1c Analyzer is composed of the systems of sample cup mixing, colorimetric detection and system control, result display.
Specifications
| Model | LD-100 | Storage Condition | Analyzer:10-60℃; Test kit: 2~8℃ |
| Method | Boronate Affinity | Shelf-Life of Test Kit | 9 months |
| Operating Type | 1-Step, fully automatic | Voltage | 12VDC-3.33A |
| Category of the test product | Laboratory | Sample Volume | 4ul |
| Sample Type | Whole blood | Data storage | 7000 |
| Measurement Range | HbA1c 4.0~15%(NGSP Unit) eAG 68-385mg/dl(mmol/l) |
Dimensions | 220(w)x150(L)x120(H)mm |
| Operating Condition | Temperature:15~35℃ Humidity:15~80%R.H |
Power connection | Detachable power supply cord |
| Device category | Fixed | Operating mode | Continuous |
PRINCIPLE
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry.
Basic Parameters
Blood collection volume: The sampling volume of whole blood should not be less than 4μl.
Sample volume: 4μl full-blood.
Reagents, Consumables
The HbA1c Analyzer should be only used together with the reagents and consumed produced by Labnovation.
Feature
Reliable
| IFCC calibrator | Normal | Abnormal | Normal | Abnormal |
| Mean HbA1c% | 5.4 | 9.6 | 5.3 | 9.2 |
| CV (%) | 2.5% | 1.9% | 2.4% | 1.8% |
Use Step
Certificated
