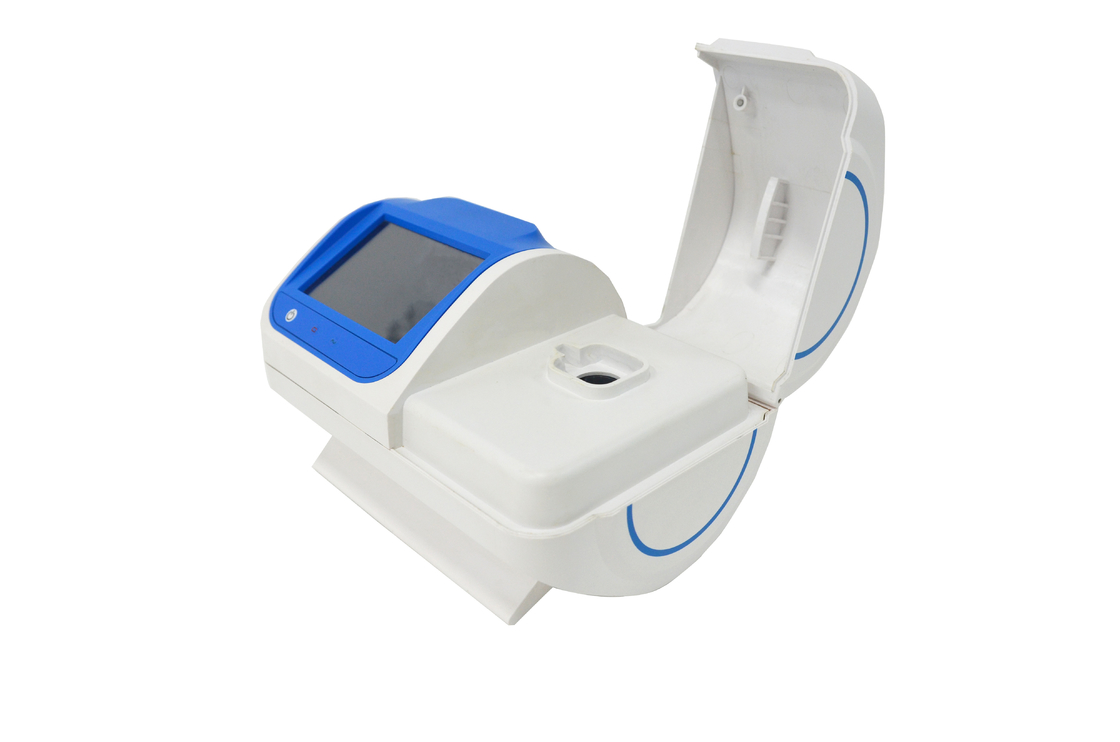

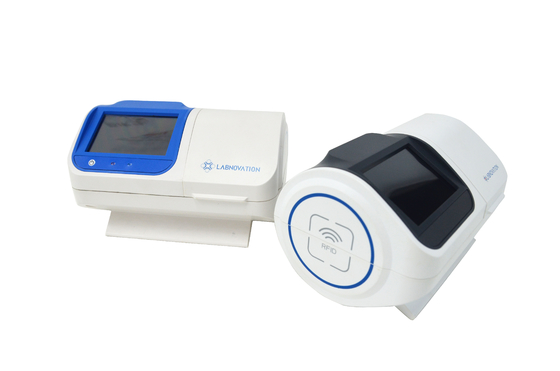

LD-100 POCT HbA1c Analyzer Real Time Detection Protable HbA1c Analyzer

HbA1c Analyzer LD-100 POCT HbA1c Analyzer Protable Real-Time Detection HbA1c Analyzer

Intended Use

LD-100 POCT HbA1c Analyzer is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. Which is a semi-automatic instrument used to analyze glycated hemoglobin and it's suitable for the detection of HbA1c in medical units at all levels.

Specifications

PRINCIPLE

• Uses the (borate affinity) fluorescent immunoturbidimetry
• Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
• The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.
• The total concentration of hemoglobin depends on the initial reduced fluorescence signal.
• Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients.
• The percentage of glycosylated hemoglobin in total hemoglobin can be determined.

Feature

• One-step Operation, simple use process easy to test HbA1c
• Protable, easy to carry
• Fast tets speed, Real-time detection
• Battery Integrated
• Portable, Compact
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• Color touch screen
• External printer (Blue-tooth)
• USB Port
• LIS Support

Reliable

Use Step

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Performance Parameters

• Accuracy:The accuracy is tested with the reference material as samples, and the relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Result reporting unit:Glycated hemoglobin (HbA1c) is reported by default in IFCC units (mmol/mol) and NGSP units (%).
• Precision:Samples with a concentration of 4.0%-6.5% are detected, and the sample coefficient of variation (CV) of the test results is not more than 3%.
• Appearance:The appearance of the instrument is neat and clean, and there is no obvious peeling, abrasion, disbonded coating and dirt on the surface coating;  The nameplate and logo should be clear. All fasteners should not be loosened. Various adjusting elements can rotate flexibly and function normally. Readouts should be clear on the display screen.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficient r of the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the same normal sample is tested, and the relative deviation of the test results is not more than ±3%.
• Functions of the analyzer:The function of report output in English;  Abnormal alarm function.
• Permission: The authority is the first-level authority, and the login authority is the first-level authority

Certificated
