Product Details:
|
Size: | 220mm*150mm*120mm | Working Environment: | Standard |
---|---|---|---|
Shelf Life: | 9 Months | Operating Mode: | Continuous |
Net Weight: | ≤5kg | Data Storage: | 7000 |
High Light: | POCT HbA1c Analyzer Battery Integrated,Compact POCT HbA1c Analyzer,portable HbA1c analyzer One Step |

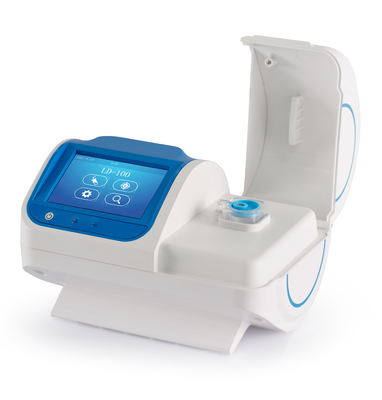

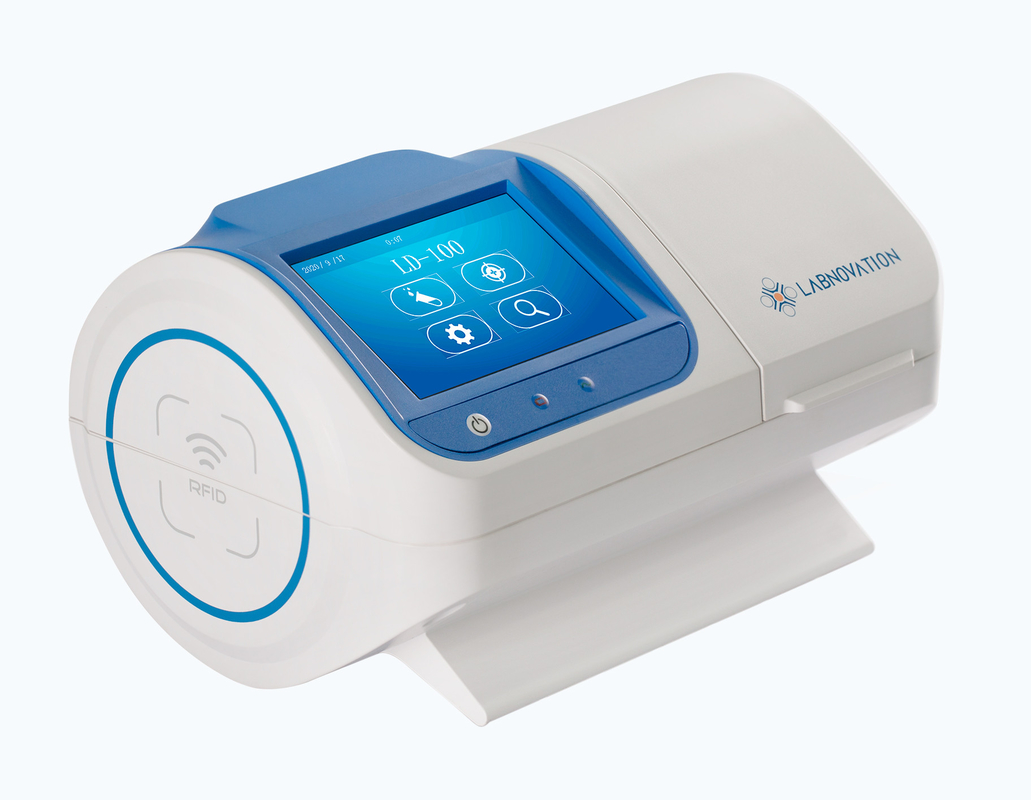

HbA1c Analyzer Hematology Anlyzer LD-100 POCT HbA1c Testing One Step Operation HbA1c Analyzer
Intended Use
This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. HbA1c Analyzer is a semi-automatic instrument used to analyze glycated hemoglobin. It has the characteristics of small sample consumption and easy operation. It is suitable for the detection of HbA1c in medical units at all levels
Specifications
Model | LD-100 |
Method | Boronate Affinity |
Operating Type | 1-Step, fully automatic |
Measurement Time | Less than 3 minutes |
Sample Type | Whole blood |
Measurement Range | HbA1c 4.0~15%(NGSP Unit) eAG 68-385mg/dl(mmol/l) |
Operating Condition | Temperature:15~35℃ Humidity:15~80%R.H |
Storage Condition | Analyzer:10-60℃; Test kit: 2~8℃ |
Shelf-Life of Test Kit | 9 months |
Voltage | 12VDC-3.33A |
Sample Volume | 4ul |
Power connection | Detachable power supply cord |
Device category | Fixed |
Operating mode | Continuous |
PRINCIPLE
Feature
Reliable
IFCC calibrator | Normal | Abnormal | Normal | Abnormal |
Mean HbA1c% | 5.4 | 9.6 | 5.3 | 9.2 |
CV (%) | 2.5% | 1.9% | 2.4% | 1.8% |
Use Step
Performance Parameters
Certificated
