LD-100 Hematology Detection Analyzer Medical One Step Hemoglobin A1c Analyzer

Description
Sample Type: Whole Blood Size: 220mm*150mm*120mm
Measurement Time: Within 3 Minutes Shelf Life: 9 Months
Group: Medical Use, Hospital Use,etc Certificated: NGSP,IFCC,CE
High Light:

IFCC Hematology Detection Analyzer

,

Medical hemoglobin a1c analyzer

,

One Step hemoglobin a1c analyzer

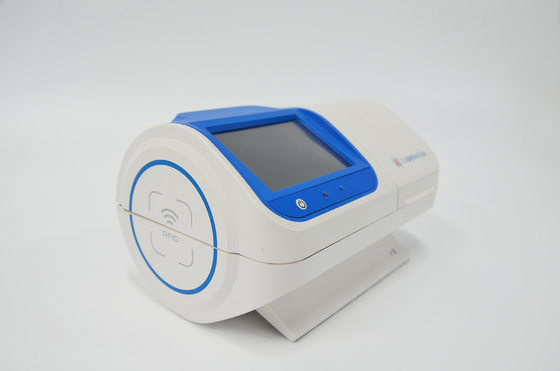

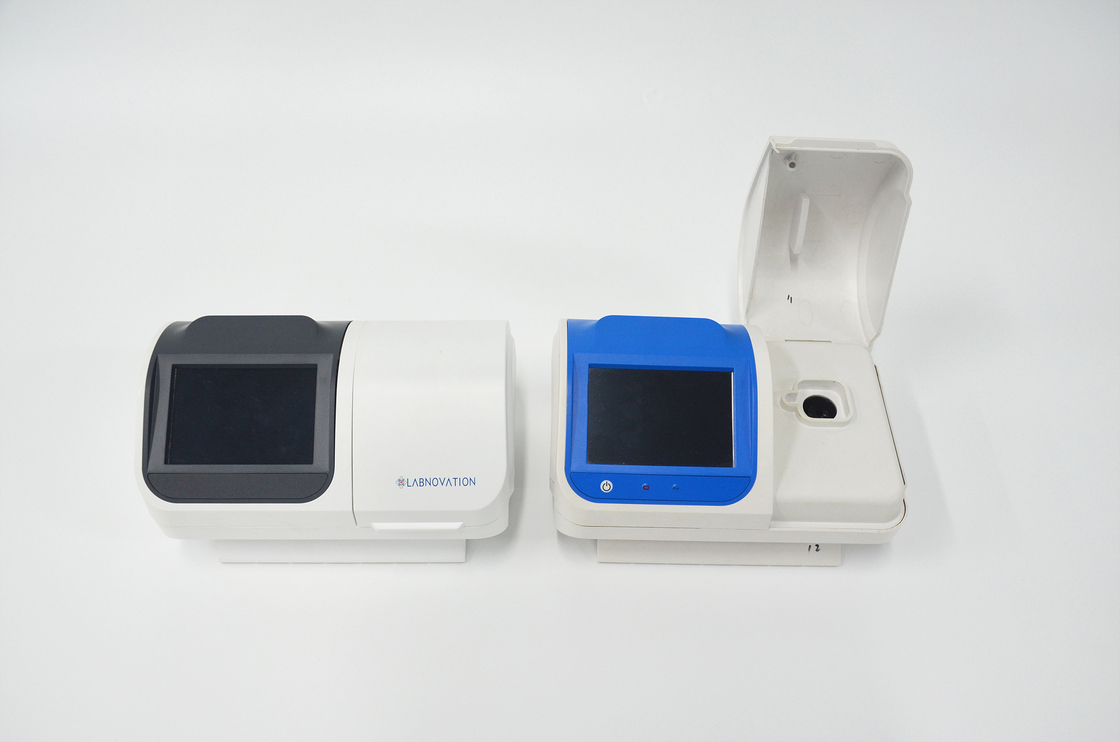

HbA1c Analyzer LD-100 Hematology Detection Analyzer Medical Use HbA1c Analyzer



Intended Use

This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood.

Specifications

Model LD-100
Method Boronate Affinity
Operating Type 1-Step, fully automatic
Measurement Time Less than 3 minutes
Sample Type Whole blood
Measurement Range HbA1c 4.0~15%(NGSP Unit)
eAG 68-385mg/dl(mmol/l)
Operating Condition Temperature:15~35℃
Humidity:15~80%R.H
Dimensions 220(w)x150(L)x120(H)mm
Shelf-Life of Test Kit 9 months
Weight 800gs
Storage Condition Analyzer:10-60℃; Test kit: 2~8℃
Voltage 12VDC-3.33A



LD-100 Hematology Detection Analyzer Medical One Step Hemoglobin A1c Analyzer 0

PRINCIPLE
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently. The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.



Performance Parameters

  • Accuracy:The relative deviation of the determination results of the analyzer should be within the range of ±8%.
  • Precision:Samples with a concentration of 4.0%-6.5% are detected, and the sample coefficient of variation (CV) of the test results is not more than 3%.
  • Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficient r of the test results should be no less than 0.9900.
  • Stability:Within 8 hours after the instrument is turned on and stable, the same normal sample is tested, and the relative deviation of the test results is not more than ±3%.



Feature

  • One-step Operation
  • Boronate Affinity
  • Battery Integrated
  • Portable, Compact
  • Cv<3%, Excellent Correlation With HPLC
  • RFID For Batch Management
  • Color touch screen
  • External printer (Blue-tooth)
  • USB Port, LIS Support




Reliable

IFCC calibrator Normal Abnormal Normal Abnormal
Mean HbA1c% 5.4 9.6 5.3 9.2
CV (%) 2.5% 1.9% 2.4% 1.8%



Use Step

  • Place cartridge in analyzer
  • Push bead into reagents
  • Insert sample into cartridge

LD-100 Hematology Detection Analyzer Medical One Step Hemoglobin A1c Analyzer 1





Certificated

LD-100 Hematology Detection Analyzer Medical One Step Hemoglobin A1c Analyzer 2
