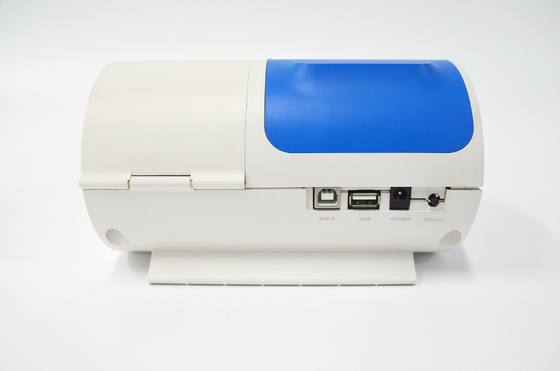

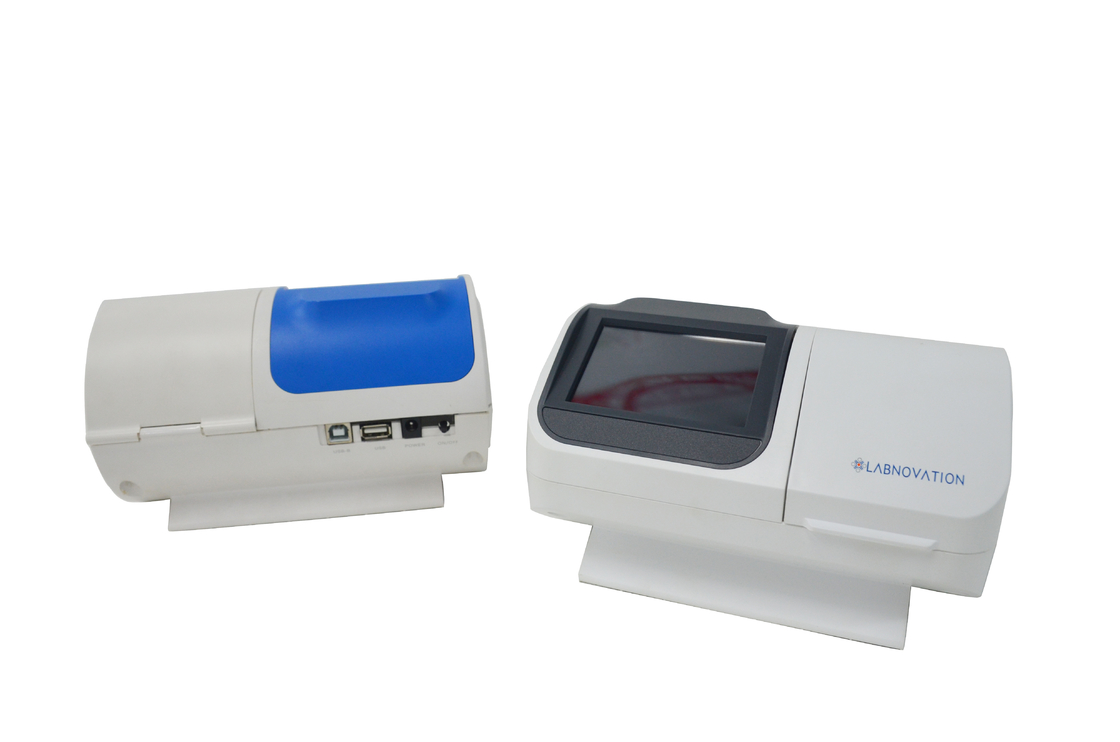

12VDC 3.33A HbA1c Test Analyzer Small Light Haematology Analyzer Machine

HbA1c Test Analyzer LD-100 Fully Automatic Hemoglobin Testing Analyzer One Step Testing HbA1c

Intended Use

LD-100 HbA1c Analyzer is intended for for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. LD-100 set up fully automatic system and color touch screen just need one step to click then start all testing. LD-100 is very small and light so it can suitable for the detection of HbA1c in medical units at all levels.

Specifications

PRINCIPLE

• Uses the (borate affinity) fluorescent immunoturbidimetry
• Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
• The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.
• The total concentration of hemoglobin depends on the initial reduced fluorescence signal.
• Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients.
• The percentage of glycosylated hemoglobin in total hemoglobin can be determined.

Feature

• Fully Automatic System
• Protable, Convenient, Easy for use
• Fast test speed, Get the result within 3 min
• Battery Integrated
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• Color touch screen

Reliable

Use Step

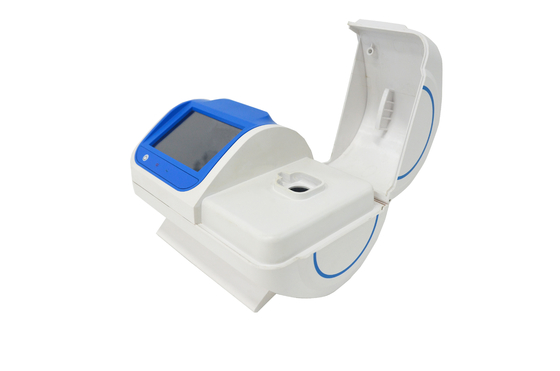

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Performance Parameters

• Accuracy:Relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Precision:Samples with a concentration of 4.0%-6.5% are detected, sample coefficient of variation (CV) of the test results is not more than 3%.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficientrof the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the relative deviation of the test results is not more than ±3%.
• Functions of the analyzer:The function of report output in English;  Abnormal alarm function.
• Result reporting unit: Glycated hemoglobin (HbA1c) is reported by default in IFCC units (mmol/mol) and NGSP units (%).
• Functions of the analyzer: The function of report output in English; Abnormal alarm function.

Certificated
