Product Details:
|
| Size: | 220mm*150mm*120mm | Weight: | 800g |
|---|---|---|---|
| Shelf Life: | 9 Months | Analytical Wave-length: | 510nm And 580nm |
| Sample Volume: | 4μl Full-blood | Input Power: | <60VA |
| High Light: | HPLC POCT HbA1c Analyzer,Protable POCT HbA1c Analyzer,IFCC Certificated Protable HbA1c Analyzer |
||

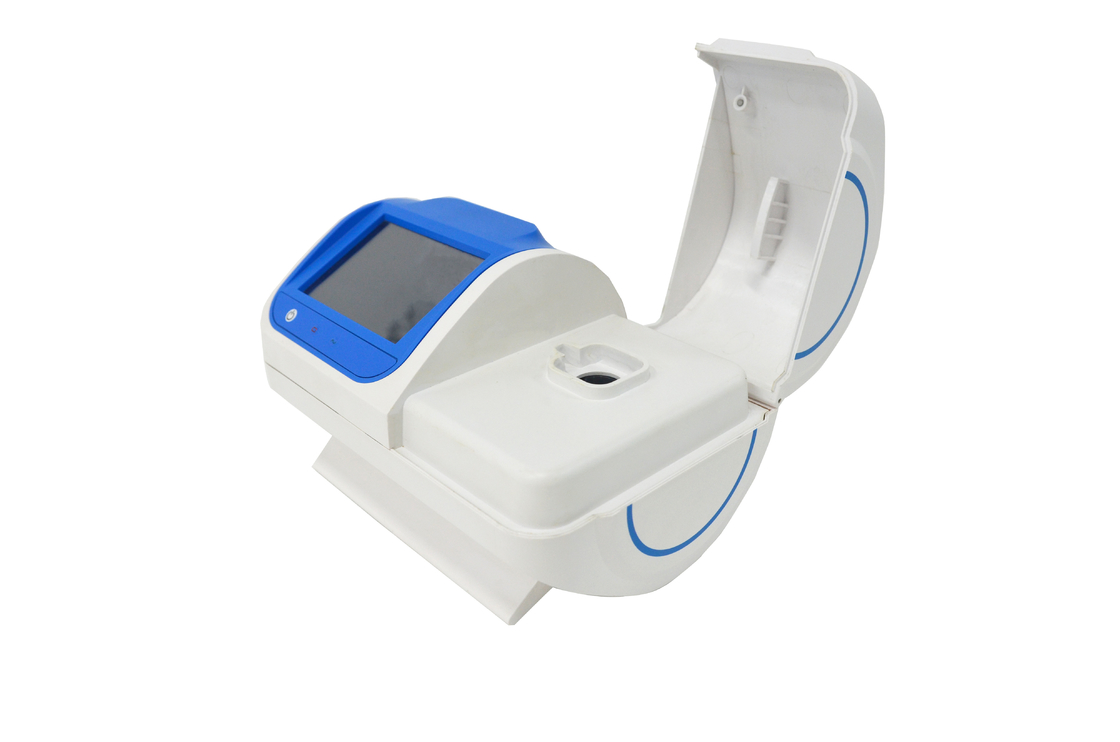

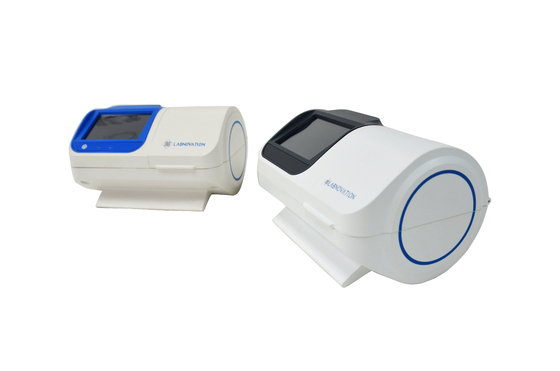

HbA1c Analyzer LD-100 POCT Excellent Correlation With HPLC Protable Analyzer For HbA1c Test Use IFCC Certificated
Intended Use
Specifications
| Model | LD-100 |
| Sample Type | Whole blood |
| Sample Volume | 4ul |
| Test Time | Less than 3 minutes |
| Data storage | 7000 |
| Method | Fluorescent Immunoturbidimetry |
| Operating Type | 1-Step Operation, Fully automatic system |
| Measurement Range | HbA1c 4.0~15%(NGSP Unit) eAG 68-385mg/dl(mmol/l) |
| Operating Condition | Temperature:15~35℃ Humidity:15~80%R.H |
| Storage Condition | Analyzer:10-60℃; Test kit: 2~8℃ |
| Voltage | 12VDC-3.33A |
| Analytical wave-length | 510nm and 580nm. |
| Certification | NGSP, IFCC |
Principle
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
Purpose
HbA1c Analyzer is used for the quantitative detection of glycosylated hemoglobin (HbA1c) in venous blood in EDTA test tubes based on the principle of boronic acid affinity fluorescence quenching.
Prduct Feature
Reliable
| IFCC calibrator | Normal | Abnormal | Normal | Abnormal |
| Mean HbA1c% | 5.4 | 9.6 | 5.3 | 9.2 |
| CV (%) | 2.5% | 1.9% | 2.4% | 1.8% |
Use Step
Advantage
FAQ
A: Yes , we have. The display is a minicap computer.
A: Yes, we have. LD-100 install the built-in printer.
A: Yes. The instrument has been tested by safety regulations and EMC to meet regulatory requirements.
Certificated
