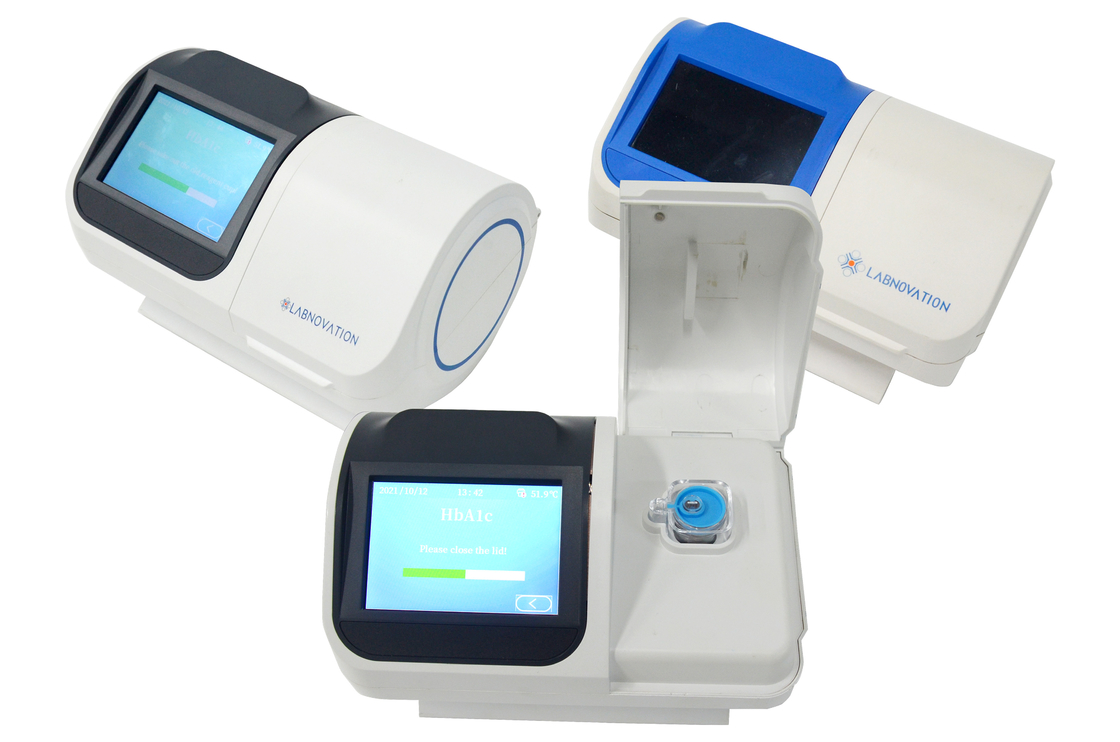

Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated

Certification
China Labnovation Technologies, Inc. certification
China Labnovation Technologies, Inc. certification
I'm Online Chat Now

Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated

Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated
Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated

Large Image :  Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated

Product Details:
Place of Origin: Shenzhen, China
Brand Name: LABNOVATION
Certification: IFCC, NGSP, CE
Model Number: LD-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15-20 working days
Payment Terms: D/A, D/P, T/T
Supply Ability: 100/Day

Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated

Description
Manufacture Place: Shenzhen, China Model: LD-100
Wavelength: 510nm & 580nm Test Time: <3 Minutes
CV: <3% Test Range: 4%~16%
High Light:

Portable POCT HbA1c Analyzer

,

IFCC POCT HbA1c Analyzer

,

One Step Portable HbA1c Analyzer

LD-100(POCT) HbA1c Analyzer One-Step HbA1c Testing IFCC Certificated CV<3% Portable HbA1c Analyzer​



Intended Use

The LD-100 is a one-step operation HbA1c analyzer. For the measurement of glycated hemoglobin by the well-established borate affinity method. Small amount of sample and easy operation which is aimed to help manage diabetes for patients and professionals in laboratory, clinic and hospital. Flexible workflow, easy to use with lab-quality results. LD-100 helps you to be more efficient in your lab workflow.





Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated 0

Specification

• Boronate affinity test principle for HbA1c: The HbA1c assay has no interference from common Hb variants

• Ease of use: only a simple black/white calibration at start up, and the instrument is ready for use. Lot-specific test calibration by the operator is not necessary.

• Less than 3-minute test time

• Small sample size, Ideal for measurements of small series

• A compact, lightweight benchtop instrument;Portable — battery operation possible

• Minimal maintenance required

• Traceable to the IFCC Reference Method for HbA1c;Results reporting unit:IFCC units (mmol/mol) and NGSP units (%%).





Working Principles

HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently. The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells. The total concentration of hemoglobin depends on the initial reduced fluorescence signal. Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients. The percentage of glycosylated hemoglobin in total hemoglobin can be determined.



Systematic Introduction

HbA1c Analyzer is a semi-automatic instrument used to analyze glycated hemoglobin. It has the characteristics of small sample consumption and easy operation. It is suitable for the detection of HbA1c in medical units at all levels.



Reliable

IFCC calibrator Normal Abnormal Normal Abnormal
Mean HbA1c% 5.4 9.6 5.3 9.2
CV (%) 2.5% 1.9% 2.4% 1.8%



Product Feature

  • Category of the test product: Laboratory
  • Device category: Fixed
  • Overvoltage category: Category II
  • Working environment: Standard
  • Power connection: Detachable power supply cord
  • Power supply: AC
  • Input power: <60VA
  • Operating mode: Continuous
  • Contamination Level: Level 2
  • Net weight: ≤5kg
  • Overall size: 192(L)×128(W)×108(H) mm
  • Storage environment: Temperature: - 20 ~55 C; Humidity: 10%~93%; Pressure: 75 kPa~106 kPa.
  • Data storage: 7000



Certificate

Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated 1Portable POCT HbA1c Analyzer One Step HbA1c Testing IFCC Certificated 2
