Product Details:
|
| Test Range: | 4%-15% (NGSP Unit) | Display: | 4.3” TFT Graphic Color Display |
|---|---|---|---|
| User Interface: | Screen Touch | Power Supply: | 100-240 V; 47-63 Hz |
| RFID: | Integrated For Identifying Test Lot And Calibration | Storage Temperature: | 10°C-40°C |
| High Light: | NGSP Labnovation HbA1c Analyzer,TFT Display Labnovation HbA1c Analyzer |
||

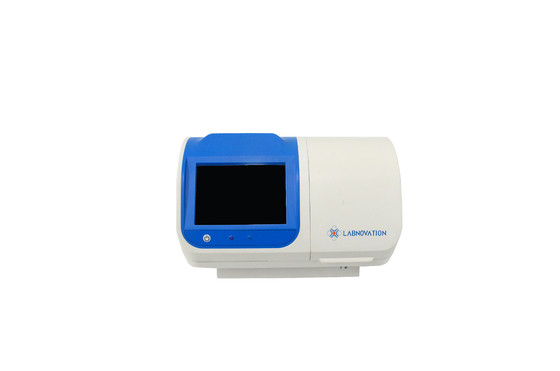

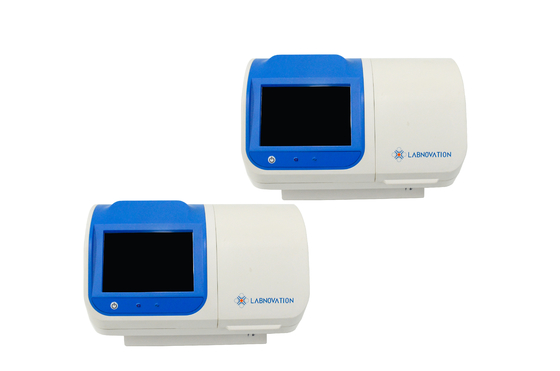

Labnovation HbA1c Analyzer LD-100 Latest Analyzer For HbA1c Testing POCT With NGSP Certificated CV<3%
Intended Use
The LD-100 is a one-step operation HbA1c analyzer. For the measurement of glycated hemoglobin by the well-established borate affinity method. Small amount of sample and easy operation which is aimed to help manage diabetes for patients and professionals in laboratory, clinic and hospital. Flexible workflow, easy to use with lab-quality results. LD-100 helps you to be more efficient in your lab workflow.
• Boronate affinity test principle for HbA1c: The HbA1c assay has no interference from common Hb variants
• Ease of use: only a simple black/white calibration at start up, and the instrument is ready for use. Lot-specific test calibration by the operator is not necessary.
• Less than 3-minute test time
• Small sample size, Ideal for measurements of small series
• A compact, lightweight benchtop instrument；Portable — battery operation possible
• Minimal maintenance required
• Traceable to the IFCC Reference Method for HbA1c；Results reporting unit:IFCC units (mmol/mol) and NGSP units (%%).
Specification
| Moder | LD-100 | Storage Condition |
Analyzer:10-60℃； Test Kit:2-8℃ |
| Method | Boronate Affinity | Shelf-Life of Test Kit | 9 months |
| Operating Type | 1-Step, fully automatic | Voltage | 12VDC-3.33A |
| Measurement Time | Less than 3 minutes | Sample Volume | 4μ |
| Sample Type | Whole Blood | Weight | 800g |
| Measurement Range |
HbA1c 4.0-15%(NGSP Unit) eAG 68-385mg/dl(mmol/l) |
Dimensions | 192(L)×128(W)×108(H) mm |
| Storage environment: |
Temperature: 20 ~55 C; Humidity: 10%~93% |
Other Features | USB Port, Lis Support |
Reliable
| IFCC calibrator | Normal | Abnormal | Normal | Abnormal |
| Mean HbA1c% | 5.4 | 9.6 | 5.3 | 9.2 |
| CV (%) | 2.5% | 1.9% | 2.4% | 1.8% |
Warning
Certificate
