Product Details:
|
| Sample Types: | Whole Blood | Test Blood Volume: | 4μL |
|---|---|---|---|
| Test Speed Throughtput: | 20 Samples Per Hour | Test Time: | <3 Minutes |
| Principle: | Borate Affinity Fluorescent Immunoturbidimetry | Data Storage: | 7000 Tests |
| High Light: | Mini HbA1c Test Analyzer,4uL HbA1c POCT Analyzer,3 Minutes HbA1c POCT Analyzer |
||
HbA1c POCT Analyzer Mini Analyzer For HbA1c Testing IFCC&NGSP Certificated Best Performance
Intended Use

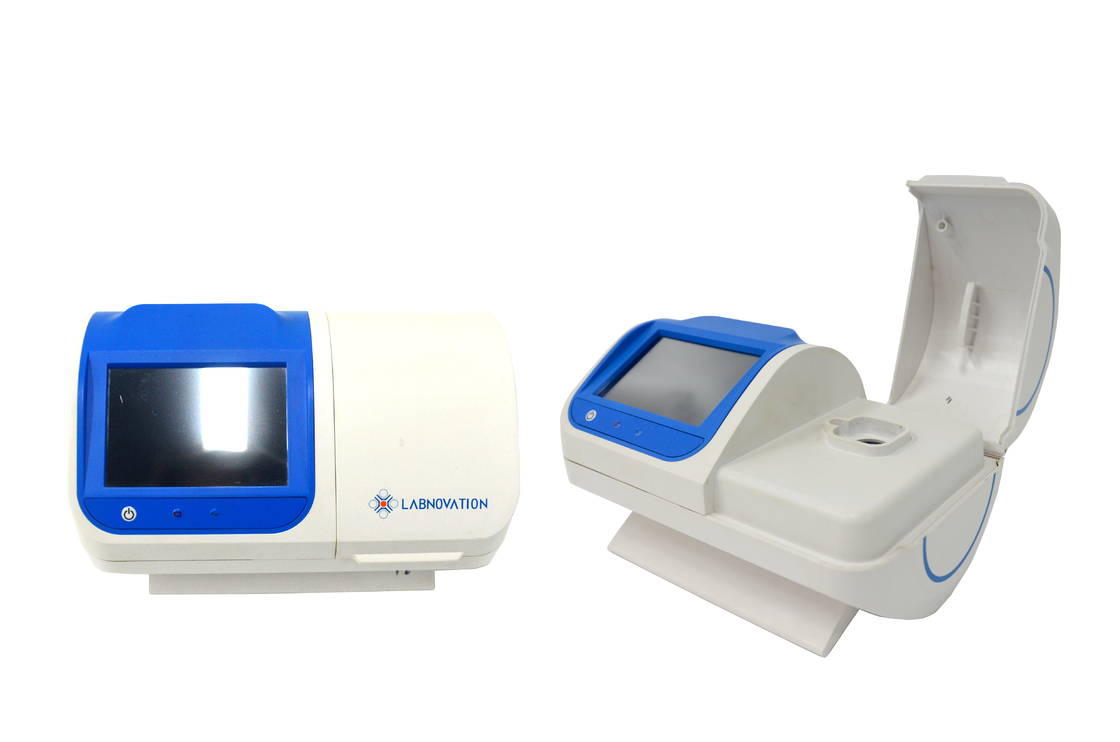

Labnovation HbA1c Analyzer LD-100 POCT Analyzer is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood which is a semi-automatic instrument used to analyze glycated hemoglobin. LD-100 is small and light, it can be used to detect of HbA1c in medical units at all levels. Fually Automatic system can help the test half work with double results.
* Boronate Affinity Method
* CV<3%, Excellent Correlation With HPLC
* Battery Integrated,Portable,Compact
* Individually packaged reagents
* RFID For Batch Management
Analyzer Reliable
| IFCC calibrator | Normal | Abnormal | Normal | Abnormal |
| Mean HbA1c% | 5.4 | 9.6 | 5.3 | 9.2 |
| CV (%) | 2.5% | 1.9% | 2.4% | 1.8% |
Specification
| Moder | LD-100 | Storage Condition |
Analyzer:10-60℃； Test Kit:2-8℃ |
| Method | Boronate Affinity | Shelf-Life of Test Kit | 9 months |
| Operating Type | 1-Step, fully automatic | Voltage | 12VDC-3.33A |
| Measurement Time | Less than 3 minutes | Sample Volume | 4μ |
| Sample Type | Whole Blood | Weight | 800g |
| Measurement Range |
HbA1c 4.0-15%(NGSP Unit) eAG 68-385mg/dl(mmol/l) |
Dimensions | 192(L)×128(W)×108(H) mm |
| Storage environment: |
Temperature: 20 ~55 C; Humidity: 10%~93% |
Other Features | USB Port, Lis Support |
